Gas Pump DWG Block for AutoCAD

Gas Pump DWG Block for AutoCAD

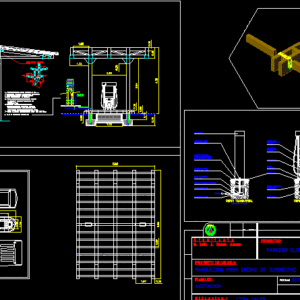

Ecological Gas Pump with wooden and tiles marquee for beach localization

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tempered galvanized with washer on, detail knot to, detail of jabalca, cross section, dispensary, valve of cut, fast shut-off, fast, stiffener hearth, welded to chassis to, fix valve of cut, metal hose, elbow of bronze, Secondary piping, flexible inlet sealer, leak detector, gasoline dispenser, break away, emergency valve, product, supply pipe, cut valves, spill container, for dispensaries, leak sensor, supply pipe, filling material , hearth, pipe for, recovery of, vapors, gun for, dispatch of, product, swiveling, island floor, rigid pipe for, recovery, of vapors, male plug, stiffener, longitudinal cutting, boundary, ctra saler, calculation project :, flat nº:, parador golf club el saler, marquee for supply unit, level of :, scale :, date:

Raw text data extracted from CAD file:

\A1;4.20 \A1;0.78 \A1;0.20 \A1;0.68 \A1;1.00 \A1;5.00 \A1;0.40 \A1;0.38 \A1;1.00 \A1;3.24 \A1;0.60 \A1;2.24 \A1;0.20 \A1;3.54 \A1;1.65 \A1;0.58 \A1;1.00 \A1;1.22 0.05 \A1;2.20 \A1;0.35 \A1;0.09 \A1;6.94 \A1;0.20 \A1;0.18 5 5 5 5 5 5 5 5 3- BOVEDILLAS CERAMICAS PLANAS O TABLERO 4- CAPA DE COMPRESION DE HORMIGON 5- TEJAS ARABES SEMIAMORTERADAS CON MORTERO DE CEMENTO Y ARENA 1:8 CON SOLAPE NO 7- JACENA DE MADERA NORTE ESCUADRIA 25X25 VIGA PRAT 60cm. CADA VIGUETA, SEPARACION DE RASTRELES 2.00 m. TEMPLADO GALVANIZADO CON ARANDELA SOBRE NORTE 6X3 CLAVADOS CON CLAVOS DE ACERO 6- RASTRELES ARRIOSTRAMIENTO DE MADERA 8- PILAR DE DIMENSIONES SEGUN PLANO 1- VIGUETAS DE MADERA NORTE ESCUADRIA 12 X 6 cm. 2- GUARNECIDO Y ENLUCIDO DE YESO CASO DE BOVEDILLA INFERIOR A 7 cm. 8 5 6 7 5 6 2 3 1 4 5" 8" d1/2"-L12" 4" 4" d1/2"-L15" 8" 5" 0,34 0,35 DETALLE NUDO A 0,15 0,05 0,05 5 5 5 5 5 5 0.05 DETALLE DE JABALCA 0.13 0.25 52 0.05 0.2 0.06 0.05 0,25 0.12 5 5 2 P. 1/2 L=12" +2+2 Gol 40X4 2+2 P. ANCLAJE 1/2 L=5" CORTE TRANSVERSAL 5 5 5 DISPENSARIO VALVULA DE CORTE RAPIDO SHUT-OFF RAPIDO SOLERA RIGIDIZADORA SOLDADA A CHASIS PARA FIJAR VALVULA DE CORTE MANGUERA METALICA FLEXIBLE DE 1 1/2" CODO DE BRONCE DE 1 1/2" TUBERIA SECUNDARIA SELLADOR FLEXIBLE DE ENTRADA 1% PEND. DETECTOR DE FUGAS DISPENSARIO GASOLINAS BREAK AWAY VALVULA DE EMERGENCIA DE PRODUCTO TUBERIA SUMINISTRO VALVULAS DE CORTE RAPIDO (SHUT-OFF) MANGUERA METALICA FLEXIBLE DE 1 1/2" CONTENEDOR DE DERRAMES PARA DISPENSARIOS DE PRODUCTO SENSOR PARA FUGAS TUBERIA DE SUMINISTRO MATERIAL DE RELLENO (SUMINISTRO DE PRODUCTO) SOLERA TUBERIA PARA RECUPERACION DE VAPORES PISTOLA PARA DESPACHO DE PRODUCTO DESTORCEDOR PISO DE ISLA TUBERIA RIGIDA PARA RECUPERACION DE VAPORES TAPON MACHO RIGIDIZADORA CORTE LONGITUDINAL DISPENSARIO GASOLINAS 5 5 5 5 ACOTACION CTRA SALER PROYECTO DE CALCULO: Nº PLANO: PARADOR CLUB DE GOLF EL SALER MARQUESINA PARA UNIDAD DE SUMINISTRO \LPROMOTOR: PLANO DE: ESCALA: A r q u i t e c t o. \fArial|b1|i0|c0|p34;\lD. Luis J. Cuesta Alonso \LS i t u a c i o n . : FECHA: E= 1/2000

Language	Spanish
Drawing Type	Block
Category	Gas & Service Stations
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, beach, block, dispenser, DWG, ecological, gas, marquee, pump, service, service station, Station, tiles, wooden
