Geometric Mashrabiya Screen Panel with 10-Point Star Pattern

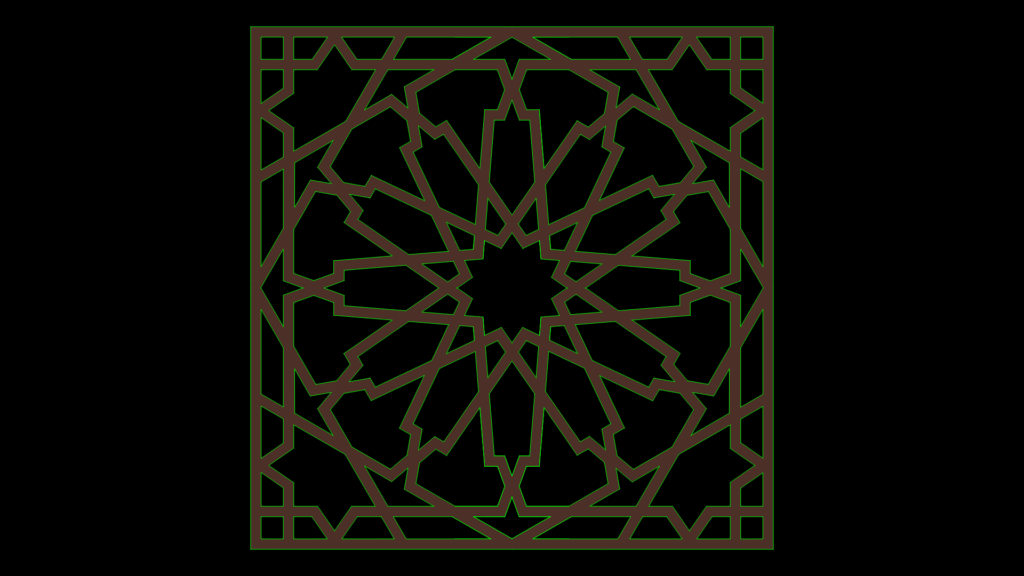

This drawing depicts a traditional Islamic Mashrabiya screen panel, featuring a sophisticated 10-point stellate geometric pattern. The panel measures approximately 350 mm × 350 mm and showcases the characteristic interlaced lines that form the complex star pattern radiating from a central void. The design incorporates traditional Islamic geometric principles with multiple symmetry axes and rectilinear border elements that frame the main pattern. The panel’s structural framework consists of precisely calculated intersections that create both decorative and functional negative spaces, allowing for filtered light transmission while maintaining privacy. The geometric construction follows classical proportional systems that have been used in Islamic architecture for centuries; the pattern’s complexity achieves both aesthetic appeal and practical functionality. The panel thickness would typically range from 15-25 mm depending on installation requirements and structural needs.
