Grease Trap 3D DWG Model for AutoCAD

Grease Trap 3D DWG Model for AutoCAD

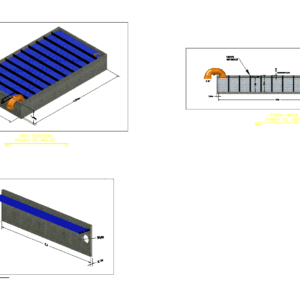

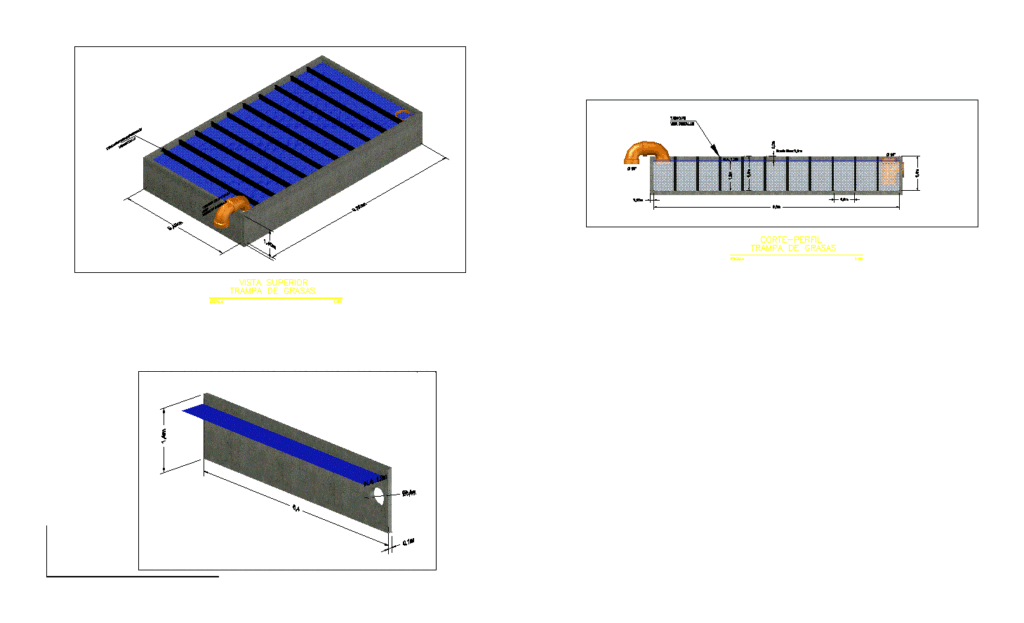

Grease trap design in 3d for a flow of 1.6 m3

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Septum with perforation, see detail, Comes from Cadica, Input pipe, N.a., edge, partition, see detail, N.a., top view, scale, Fat trap, scale, Fat trap, detail, scale, Septum grease trap

Raw text data extracted from CAD file:

\A1;1,40m \A1;5,40m \A1;9,80m 0,2m 1,4m 1,2m 9,8m 1,4m 0,8m 0,15m 5,4 0,1m 1,4m \U+22050,4m <>m <>m <>m TABIQUE CON PERFORACIÓN VER DETALLE VIENE DE CADICA 2 d16" TUBERIA DE ENTRADA N.A. 1,2m <>m <>m <>m Borde libre:0,2m d 16" d 16" <>m <>m <>m TABIQUE VER DETALLE <>m 5 <>m <>m N.A. 1.2m <>m VISTA SUPERIOR ESCALA 1:50 TRAMPA DE GRASAS CORTE-PERFIL ESCALA 1:50 TRAMPA DE GRASAS DETALLE ESCALA 1:50 TABIQUE - TRAMPA DE GRASAS

Language	Spanish
Drawing Type	Model
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	3d, autocad, Design, DWG, einrichtungen, facilities, fat, flow, gas, gesundheit, grease, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, model, provision, trap, wasser bestimmung, water
