Green Roof DWG Block for AutoCAD

Green Roof DWG Block for AutoCAD

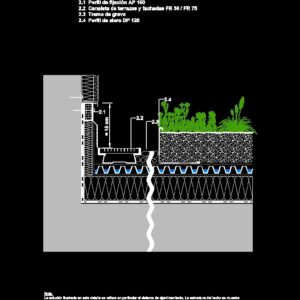

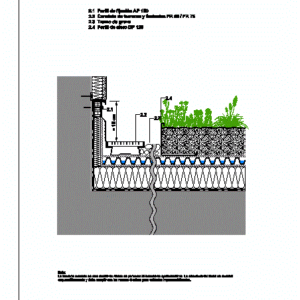

This design shows as a green cover on the rooftop

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

authorization by: zinc covered entlo. barcelona reserves the right to make technical changes. there is no response for printing errors., note: the solution illustrated in this detail refers in particular to the landscaping system. The roof structure shown schematically must meet the technical standards for waterproof roofs., floral covert inverted cover with fd, meeting wall with gravel channel, standard detail, jgl, system:, draft:, title:, drawing:, scale:, archive, fixing profile ap channel of terraces facades fr fr section of gravel profile of eave dp, review:, first edition:

Raw text data extracted from CAD file:

= 15 cm Autorización por: ZinCo Cubiertas Ecológicas, c/Paris 45-47 Entlo. 3a, ES-08029 Barcelona Se reserva el derecho de realizar modificaciones técnicas. No se responde por errores de imprenta. Nota: La solución ilustrada en este detalle se refiere en particular al sistema de ajardinamiento. La estructura del techo se muestra esquemáticamente y debe cumplir con las normas técnicas para cubiertas impermeabilizadas. Tapizante Floral en cubierta invertida con Floradrain® FD 25-E Encuentro muro con tramo de grava y canaleta Detalle estándar 1:5 CAD_es_Ext_FD25-E_CInv_EncMu02.dwg 13.01.2014 JGl Sistema: Proyecto: Título: Dibujo: Escala: Archivo 2.1 Perfil de fijación AP 150 2.2 Canaleta de terrazas y fachadas FR 50 / FR 75 2.3 Tramo de grava 2.4 Perfil de alero DP 120 2.3 2.1 2.2 2.4 08.11.2012 Revisión: Primera edición:

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, construction details section, cover, cut construction details, Design, DWG, green, green roof, roof, rooftop, shows
