Horizontal Alignment – Highway Mexico – Tuxpan DWG Block for AutoCAD

Horizontal Alignment – Highway Mexico – Tuxpan DWG Block for AutoCAD

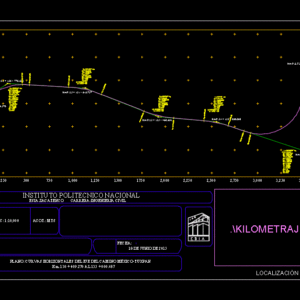

Horizontal alignment of the highway Mexico – Tuxpan KM 135 000 687 130 409 270 AL. It contains data curves and mileages of them.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

e s a a, acot .: mts, date:, plane: horizontal curves of the axis of the road mexico-tuxpan, esia zacatenco career: civil engineering, national polytechnic institute, s.p.v., ste, entrance, exit

Raw text data extracted from CAD file:

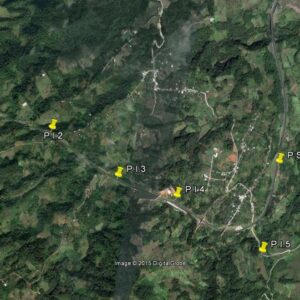

E S I A N P I Km P.S.T1 = 130 + 409.270 Km P.I.1 = 130 + 770.651 Km P.I.2 = 131 + 615.727 Km P.I.3 = 132 + 460.691 Km P.I.4 = 133 + 090.008 Km P.I.5 = 134 + 093.073 Km P.S.T2 = 135 + 000.687 ACOT.: MTS ESC: 1:10,000 FECHA: PLANO: CURVAS HORIZONTALES DEL EJE DEL CAMINO MÉXICO-TUXPAN ESIA ZACATENCO CARRERA:INGENIERIA CIVIL INSTITUTO POLITECNICO NACIONAL 160369 S.P.V. Km. 130 + 409.270 AL 135 + 000.687 18 DE JUNIO DE 2015 0 250 500 750 1,250 1500 1750 2,000 2,250 2,500 2,750 3,000 3,250 3,500 1,000 3,750 0 250 750 1,000 1,250 1,500 500 D = 38°22'46" der STe = 238.568 c D = 30°34'38.8" e q = 3°54'3.6" PI = 0+361.38 Gc = 2°0'0" Lc = 305.774 Rc = 572.958 Xc = 77.984 Yc = 1.771 k = 39.004 p = 0.443 Le = 78.02 Sc = 10% Ac = 0.6 TE=0+122.81 EC=0+200.83 CE=0+506.60 ET=0+584.62 D = 18°14'53" der ST = 184.039 PI = 1+191.13 Gc = 1°0'0" Lc = 364.961 Rc = 1145.916 Sc = 10% Ac = 0.6 Le entrada = 69 Le salida = 69 PC=1+007.09 PT=1+372.05 D = 16°31'25" izq ST = 166.391 PI = 2+032.98 Gc = 1°0'0" Lc = 330.472 Rc = 1145.916 Sc = 10% Ac = 0.6 Le entrada = 69 Le salida = 69 PC=1+866.59 PT=2+197.06 D = 13°17'0" der ST = 133.432 PI = 2+659.99 Gc = 1°0'0" Lc = 265.667 Rc = 1145.916 Sc = 10% Ac = 0.6 Le entrada = 69 Le salida = 69 PC=2+526.55 PT=2+792.22 D = 109°39'35" izq STe = 690.271 c D = 99°54'35" e q = 4°52'30" PI = 1+135.30 Gc = 2°30'0" Lc = 799.278 Rc = 458.366 Xc = 77.943 Yc = 2.212 k = 38.991 p = 0.554 Le = 78 Sc = 9.8% Ac = 0.6 TE=0+445.02 EC=0+523.02 CE=1+322.30 ET=1+400.30 \W6.52296; LOCALIZACIÓN

Language	Spanish
Drawing Type	Block
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	al, alignment, autocad, block, curves, data, DWG, HIGHWAY, horizontal, km, mexico, pavement, Road, route
