Hostel, Lodging Hotel, Accommodation 2D DWG Plan for AutoCAD
Plan, elevation and cross section view of five star hotel. It has three floors with basement. Basement plan has following areas – hall, 2 empty room, bathroom, waiting room, entrance. First floor plan has following areas – reception, hall, 4 empty room, 4 bathrooms, 2 single bed bedroom, 4 double bed bedrooms. Second floor plan has following ares – hall, matrimonial bedroom, bathroom, empty room. Third floor has same as second floor setup. The entire area is covered with gardening and landscaping. Total foot print area of the plan is approximately 230 sq meters.
| Language | English |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |

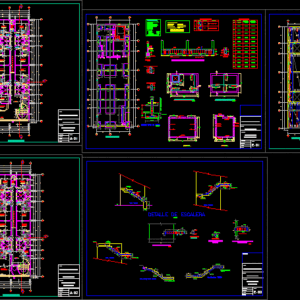

| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | 150 - 249 m² (1614.6 - 2680.2 ft²) |
| Building Features | A/C, Fireplace, Deck / Patio, Garden / Park |
| Tags | accommodation, autocad, DWG, hostel, Hotel, Lodging Hotel, Restaurant, spa |
