Hut An Inn DWG Full Project for AutoCAD

Hut An Inn DWG Full Project for AutoCAD

Restaurant projects in Ecuador, El Morro.

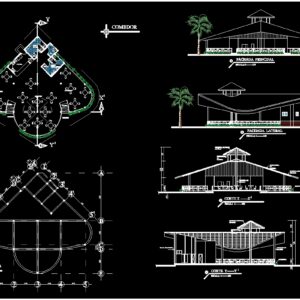

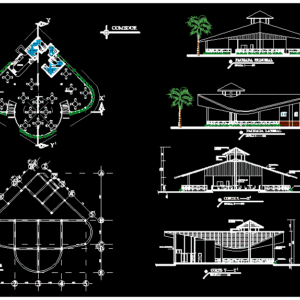

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

secular university, vicente rocafuerte, guayaquil, court x —— x, dining room, main facade, wooden structure, covered with cade leaves, kitchen, box, sshh ladies, sshh gentlemen, income, ramp, util. , lateral facade, cut and —— and, plant arq., plant of axes, column of wood, wooden pillar, jardinera

Raw text data extracted from CAD file:

Universidad Laica VICENTE ROCAFUERTE De Guayaquil 0.98 5.65 2.36 4.95 0.94 9.36 3.46 2.9 3 0.98 0.36 0.36 5.11 4.05 1.14 3.81 0.9 2.83 2.37 2.8 6.11 9.87 5.05 5.12 4.92 4.88 5.13 9.36 CORTE X ------X 1 COMEDOR FACHADA PRINCIPAL ESCALA: 1---------100 ESCALA: 1---------100 5 5 5 5 5 5 ESTRUCTURA DE MADERA CUBIERTA DE HOJAS DE CADE ESTRUCTURA DE MADERA CUBIERTA DE HOJAS DE CADE COCINA COMEDOR COMEDOR COMEDOR CAJA S.S.H.H DAMAS S.S.H.H CABALLEROS INGRESO RAMPA X X 1 ESCALA: 1---------100 UTIL. UTIL. INGRESO RAMPA FACHADA LATERAL ESCALA: 1---------100 Y 1 Y ESTRUCTURA DE MADERA CUBIERTA DE HOJAS DE CADE 5 5 5 5 5 CORTE Y------Y 1 ESCALA: 1---------100 1 2 3 4 4 5 A B C E D 1 2 3 4 4 5 1 1 1 1 1 A B C D E F 1 1 1 1 1 1 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 PLANTA ARQ. ESCALA: 1---------100 PLANTA DE EJES COLUMNA DE MADERA COLUMNA DE MADERA PILAR DE MADERA JARDINERA JARDINERA

Language	Spanish
Drawing Type	Full Project
Category	House
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aire de restauration, autocad, dining hall, Dining room, DWG, ecuador, el, esszimmer, food court, full, hut, inn, lounge, morro, praça de alimentação, Project, projects, Restaurant, restaurante, sala de jantar, salle à manger, salon, speisesaal
