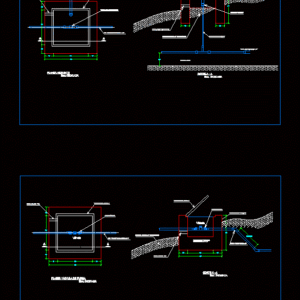

BOX HYDRANT TO Irrigation technology; PLANT; COURT DETAILS AND SPECIFICATIONS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

variable, Republic of Peru, Polyethylene hose, Metal cap, Quick coupling valve, your B. Pvc sap, Drainage with pvc pipe, Elbow pe female, Metal cap, Concrete f’c, Quick coupling wrench, Selected sieve material, Nipple pvc sap, Drainage with pvc pipe, Support bed, Tee pvc sap, Hydranthydraulic plant esc .: indicated, Cut to length: indicated, Simple union of, Plant purge valve purge valve esc .: indicated, Pvc drainage, your B. Pvc sap, Upr adapter, metal lid, valve, Cut to length: indicated, Pvc drainage, Selected screening material, Concrete f’c, metal lid, Concrete f’c drainage with tub. Pvc, valve, Universal union, variable, Elbow pvs sap

Raw text data extracted from CAD file:

0,1 0,1 0,4 0,6 0,1 0,1 0,4 0,4 0,1 0,1 0,15 0,4 0,4 0,1 0,1 0,6 0,1 0,1 0,4 VARIABLE REPUBLICA DEL PERU 0,1 0,1 0,4 0,6 A A MANGUERA DE POLIETILENO d3/4" TAPA METALICA DE 0.40 x0.40 VALVULA DE ACOPLE RAPIDO TUB. PVC SAP C-10 DE d 3/4" A d 1" DRENAJE CON TUBERIA PVC 5 5 5 5 5 5 5 5 5 5 CODO PE 3/4" HEMBRA TAPA METALICA DE 0.40 x0.40 CONCRETO F'c = 175 kg/cm2 LLAVE DE ACOPLE RAPIDO 3/4" MATERIAL TAMISADO Y SELECCIONADO NIPLE PVC SAP C-10 d 3/4" DRENAJE CON TUBERIA PVC 5 CAMA DE APOYO TEE PVC SAP C-10 d 3/4" ó 1" PLANTA HIDRANTEHIDRANTE \W5.15464; Esc.: INDICADA CORTE A - AA - A \W5.15464; Esc.: INDICADA UNION SIMPLE DE 3/4" PLANTA VALVULA DE PURGAVALVULA DE PURGA \W5.15464; Esc.: INDICADA 5 5 5 5 5 5 5 DRENAJE C/TUB. PVC TUB. PVC SAP C-10 de d 3/4" A d 1" ADAPTADOR UPR TAPA METALICA 0.40 x0.40 A A Válvula CORTE A - AA - A \W5.15464; Esc.: INDICADA DRENAJE C/TUB. PVC MATERIAL TAMIZADO Y SELECCIONADO CONCRETO F'c = 175 kg/cm2 TAPA METALICA 0.40 x0.40 5 CONCRETO F'c = 175 kg/cm2 DRENAJE CON TUB. PVC Válvula UNION UNIVERSAL VARIABLE CODO PVS SAP d 3/4" x 45° 5 5 0,4 0,6

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
