Industrial Swivel Castor wheel Assembly Detail Engineering Drawing

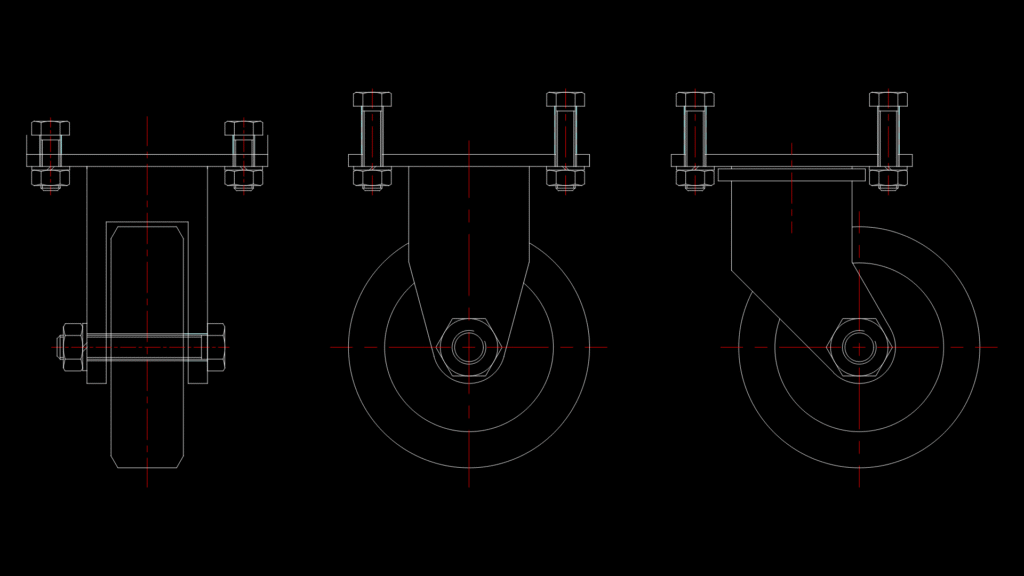

This technical drawing depicts a complete industrial castor wheel assembly shown from multiple orthographic views. This drawing illustrates the relationship between the wheel, mounting bracket, and swivel mechanism with bolted connections. The castor features a cylindrical wheel supported by a central axle with hex nut fasteners, attached to a U-shaped fork mount that connects to a swivel plate via a vertical kingpin. The mounting plate includes four bolt holes at the corners for secure attachment to equipment. The design demonstrates standard industrial-grade construction with emphasis on load-bearing capability and 360° rotation functionality. The central kingpin arrangement allows for smooth pivoting while maintaining structural integrity under load conditions – a critical consideration for material handling applications where maneuverability and durability must be balanced.
