Infill Housing–Party Wall, Floors, Ceilings, Finishes, Metal Roof DWG Detail for AutoCAD

Infill Housing–Party Wall, Floors, Ceilings, Finishes, Metal Roof DWG Detail for AutoCAD

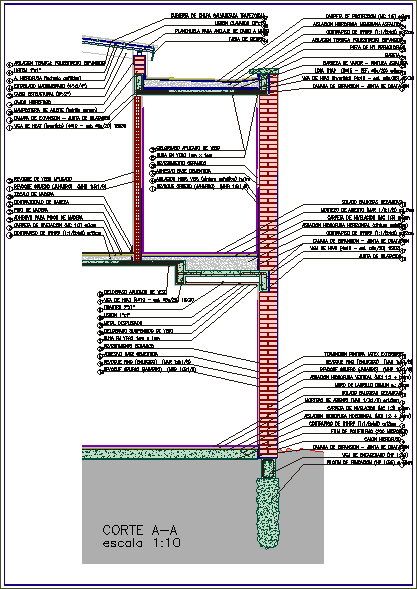

Construction detail of party wall with pilings, cement floor, suspended ceiling, ceramics, metal roof.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cut, polyethylene film, hºhrp subfloor, horizontal water leakage insulation, leveling folder, seat mortar, floor tiles, expansion chamber expansion joint, chained beam, foundation pilot, water drawer, common brick wall e .:, vertical waterproofing insulation, thick plaster, thin plaster, exterior latex paint finish, dilatation meeting, beam of hºaº est., hºhrp subfloor, horizontal water leakage insulation, leveling folder, seat mortar, floor tiles, expansion chamber expansion joint, beam of hºaº est., slab hºaº ref., vapor barrier asphalt paint, thermal insulation: polystyrene spandex, hºhrp subfloor, waterproof insulation: asphaltic membrane, protection folder, babe, pre-molded h, expansion chamber expansion joint, thick plaster, thin plaster, cementitious base adhesive, ceramic coating, gypsum plaster, expanded metal, ribbon, suspenders, suspended ceilings, beam of hºaº est., hºhrp subfloor, leveling folder, wood flooring adhesive, wooden floor, against wood, wooden socle, thick plaster, water insulation see., ceramic coating, gypsum plaster, cementitious base adhesive, plaster applied ceiling, thick plaster, plaster plaster applied, expansion chamber expansion joint, beam of hºaº est., adjustment masonry, water drawer, flat iron for anchoring the wall, closing table, nail clipboard, structural, to. water-repellent, ribbon, thermal insulation: polystyrene spandex, trapezoidal galvanized sheet cover, machinable boarding, scale, plaster applied ceiling

Raw text data extracted from CAD file:

CORTE A-A FILM DE POLIETILENO (200 MICRONES) CONTRAPISO DE HºHRP (1:1/8:4:8) e:12cm AISLACION HIDROFUGA HORIZONTAL (MCI 1:3 + hidro) CARPETA DE NIVELACION (MC 1:3) e:3cm MORTERO DE ASIENTO (MAR 1/3:1/8) e:1.5cm SOLADO BALDOSAS CERAMICAS CAMARA DE EXPANSION - JUNTA DE DILATACION VIGA DE ENCADENADO (Hº 1:3:3) PILOTIN DE FUNDACION (Hº 1:3:3) d 30cm CAJON HIDROFUGO MURO DE LADRILLO COMUN e.: 30cm AISLACION HIDROFUGA VERTICAL (MCI 1:3 + hidro) REVOQUE GRUESO (JAHARRO) (MHR 1:3:1/8) REVOQUE FINO (ENLUCIDO) (MAR 1:3:1/8) TERMINCION PINTURA LATEX EXTERIORES JUNTA DE DILATACION VIGA DE HºAº (4d10 - est. d6c/20) 15X30 CONTRAPISO DE HºHRP (1:1/8:4:8) e:12cm AISLACION HIDROFUGA HORIZONTAL (pintura asfaltica) CARPETA DE NIVELACION (MC 1:3) e:3cm MORTERO DE ASIENTO (MAR 1/3:1/8) e:1.5cm SOLADO BALDOSAS CERAMICAS CAMARA DE EXPANSION - JUNTA DE DILATACION VIGA DE HºAº (invertida) (4d10 - est. d6c/20) 15X30 LOSA HºAº (8d15 - REF. d6c/20) e:8cm BARRERA DE VAPOR - PINTURA ASFALTICA AISLACION TERMICA: POLIESTIRENO ESPANDIDO CONTRAPISO DE HºHRP (1:1/8:4:8) e:12cm AISLACION HIDROFUGA: MEMBRANA ASFALTICA CARPETA DE PROTECCION (MC 1:3) e:3cm BABETA PIEZA DE Hº PREMOLDEADO CAMARA DE EXPANSION - JUNTA DE DILATACION REVOQUE GRUESO (JAHARRO) (MHR 1:3:1/8) REVOQUE FINO (ENLUCIDO) (MAR 1:3:1/8) ADHESIVO BASE CEMENTICIA REVESTIMIENTO CERAMICO BUÑA EN YESO 1cm x 1cm METAL DESPLEGADO LISTON 1"x1" TIRANTES 2"X1" CIELORRASO SUSPENDIDO DE YESO VIGA DE HºAº (4d10 - est. d6c/20) 15X30 CONTRAPISO DE HºHRP (1:1/8:4:8) e:12cm CARPETA DE NIVELACION (MC 1:3) e:3cm ADHESIVO PARA PISOS DE MADERA PISO DE MADERA CONTRAZOCALO DE MADERA ZOCALO DE MADERA REVOQUE GRUESO (JAHARRO) (MHR 1:3:1/8) AISLACION HIDR. VER. (pintura asfaltica) h.:1m REVESTIMIENTO CERAMICO BUÑA EN YESO 1cm x 1cm ADHESIVO BASE CEMENTICIA CIELORRASO APLICADO DE YESO REVOQUE GRUESO (JAHARRO) (MHR 1:3:1/8) REVOQUE DE YESO APLICADO CAMARA DE EXPANSION - JUNTA DE DILATACION VIGA DE HºAº (invertida) (4d10 - est. d6c/20) 15X30 MAMPOSTERIA DE AJUSTE (ladrillo comun) CAJON HIDROFUGO PLANCHUELA PARA ANCLAJE DE CABIO A MURO TABLA DE CIERRE LISTON CLAVADOR (2"x1") CABIO ESTRUCTURAL (5"x2") A. HIDROFUGA (techado asfáltico) LISTON 1"x1" AISLACION TERMICA: POLIESTIRENO ESPANDIDO CUBIERTA DE CHAPA GALVANIZADA TRAPEZOIDAL ENTABLADO MACHIMBRADO (4"x3/4") escala 1:10 CIELORRASO APLICADO DE YESO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 3 6 48 8 9 18 3 17 19 20 21 22 23 6 24 25 44 45 46 47 13 14 37 26 27 28 29 30 31 17 35 6 8 31 32 33 34 13 36 13 48 37 38 27 31 17 3 38 4 39 40 41 42 43

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots	Missing Attachment
File Type	dwg
Materials	Masonry, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, brick walls, ceiling, ceilings, cement, ceramics, construction, constructive details, DETAIL, detalle, DWG, finishes, floor, floors, metal, mur de briques, panel, parede de tijolos, partition wall, party, roof, suspended, wall, ziegelmauer
