Inspection Box DWG Detail for AutoCAD

Inspection Box DWG Detail for AutoCAD

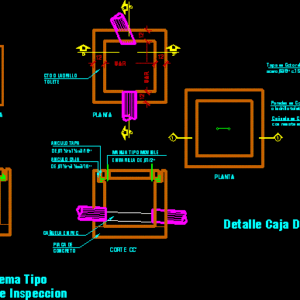

Detail of inspection box sewer waters

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cut, Inspection box detail, plant, hook, lid in reinforced cct, steel in both directions, cannon in ccto, walls in simple ccto, with enameled finish, esuema type, inspection box, cut dd ‘, concrete, in rod, removable type handle, in iron, on both sides, top angle, box angle, pass in tube, cut cc ‘, plate, cannon in pvc, PVC pvc flex., cannon in pvc, rowlock, brick, plant, removable type handle, in rod, reinforced concrete, top, in iron every, reinforced concrete, cms in both directions, rowlock, brick, inspection box, var., var., brick tolete

Raw text data extracted from CAD file:

\A1;.12 \A1;VAR. \A1;.12 \A1;.12 \A1;VAR. \A1;.12 \A1; 1 1 CORTE 1-1 (LONGITUDINAL) Detalle Caja De InsPeccion PLANTA GANCHO Ø3/4" Tapa en Ccto reforzado 3.000psi acero Ø3/8" c.15M En ambos sentidos Cañuela en Ccto Paredes en Ccto simple con remate esmaltado Esuema Tipo Caja De Inspeccion CORTE DD' CONCRETO EN VARILLA DE d1/2" MANIJA TIPO MOVIBLE EN HIERRO d3/8" A 1/10 EN AMBOS LADOS C' ANGULO TAPA ANGULO CAJA DE Ø1¼"x1¼x3/16" DE Ø1½"x1½x3/16" PASE EN TUBO d3/4" CORTE CC' PLACA DE CAÑUELA EN PVC TUBERIA PVC Flex. CAÑUELA EN PVC 100% 100% C TOLETE CTO O LADRILLO D D' PLANTA MANIJA TIPO MOVIBLE EN VARILLA DE d1/2" CONCRETO REFORZADO TAPA EN HIERRO d3/8" CADA CONCRETO REFORZADO 0.20 Cms EN AMBOS SENTIDOS \A1; TOLETE CTO O LADRILLO CAJA DE INSPECCION 5 VAR. 5 5 VAR. 5 o ladrillo tolete

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, box, casa de banho, DETAIL, DWG, fosse septique, inspection, mictório, plumbing, sanitär, Sanitary, sewer, toilet, toilette, toilettes, urinal, urinoir, wasser klosett, waters, WC
