Interior Stairway DWG Section for AutoCAD

Interior Stairway DWG Section for AutoCAD

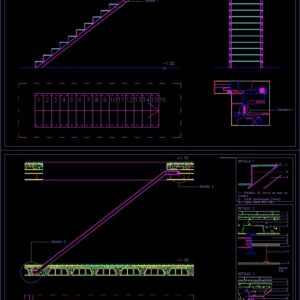

Interior stairway – One tract – View – Sections – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

stairs, detail, scale, step: in the form of wooden slab. beam profile: profile, detail, detail, marble flooring cm. mortar of cement mesh of cm. concrete cooperating sheet loading beam: tie beam:, profile ordinary screw with washer ladder beam: support profile for false ceiling support. false plaster ceiling. ceramic vault., scale

Raw text data extracted from CAD file:

Escalera 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 -1.28 m +1.76 m +1.76 m -1.28 m Detalle 1 Detalle 2 Detalle 3 DETALLE 1 1 2 3 Escala 1:5 1.- Peldaño: En forma de losa de madera. 2.- Perfil Conformado (4mm). 3.- Viga: Perfil IPE-100. DETALLE 3 3 1 2 6 DETALLE 2 4 5 7 8 9 10 11 12 1 2 3 4 6 8 9 10 13 1.- Solería de Mármol 30x30 cm. 2.- Mortero de Cemento M-40. 3.- Mallazo de d 8mm de 15x15 cm. 4.- Hormigón HA-25/B/25/I. 5.- Chapa Colaborante PL76/383. 6.- Viga de Carga: IPE-200. 7.- Viga de Atado: IPE-120. 8.- Perfil L-50.4. 9.- Tornillo Ordinario con arandela 8.8. 10.- Viga de escalera: Perfil IPE-100. 11.- Soporte para sujeción de falso techo. 12.- Falso techo de escayola. 13.- Bovedilla Cerámica. Escala 1:5

Language	Spanish
Drawing Type	Section
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, degrau, details, DWG, échelle, escada, escalier, étape, interior, ladder, leiter, section, sections, staircase, stairway, step, stufen, tract, treppe, treppen, View
