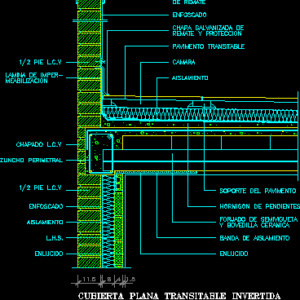

INVERTED FLAT ROOF

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

galvanized sheet, auction, foot l.c.v., perimeter belt, inverted flat transitable cover, scale, forged half-jointed, Ceramic vault, plaster, insulation band, concrete of earrings, pavement support, isolation, camera, passable pavement, protection top, galvanized sheet metal, isolation, plastered, l.h.s., plaster, foot l.c.v., sheet of, meabilization, plastered, plating l.c.v.

Raw text data extracted from CAD file:

1.5 11.5 6 4 CHAPA GALVANIZADA DE REMATE 1/2 PIE L.C.V. ZUNCHO PERIMETRAL CUBIERTA PLANA TRANSITABLE INVERTIDA ESCALA 1:10 FORJADO DE SEMIVIGUETA Y BOVEDILLA CERAMICA ENLUCIDO BANDA DE AISLAMIENTO HORMIGON DE PENDIENTES SOPORTE DEL PAVIMENTO AISLAMIENTO CAMARA PAVIMENTO TRANSITABLE REMATE Y PROTECCION CHAPA GALVANIZADA DE AISLAMIENTO ENFOSCADO L.H.S. ENLUCIDO 1/2 PIE L.C.V. LAMINA DE IMPER- MEABILIZACION ENFOSCADO 4 6 1 5 1.5 CHAPADO L.C.V.

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
