Irrigation DWG Full Project for AutoCAD

Irrigation DWG Full Project for AutoCAD

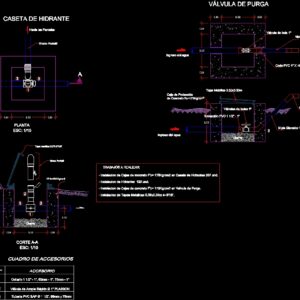

Works are required and necessary for a Tecnificado Irrigation Project, which are used to connect Moisturizing sprinklers and purge box serves for maintenance and thus evacuate the accumulation of solids in the system pipe irrigation system.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Portable arm, cut, Portable arm, Towards the plots, metal lid, Hydrant shed, plant, purge valve, Esc:, accessory, Accessories box, collar, Plasson quick coupling valve, Pvc sap pipe, Concrete protection box, metal lid, gravel, Elbow pvc, Pvc lift nipple, Elbow pvc, Pvc lift nipple, ball valve, Ball valves, Pvc reduction, Water intake, gravel, Jobs to perform:, Installation of concrete boxes in hydrant cabin und., Installation of hydrants und., Installation of concrete boxes in purge valve., Installation of metal covers, scale:, Improvement of irrigation technified, draft:, flat, design:, drawing:, date:, sheet, Location:, independence, Ancash, region, province, Huaraz, district, Indicated, location, Purge valve, stage

Raw text data extracted from CAD file:

0.30 0.10 0.10 0.10 0.30 0.10 0.18 0.30 0.10 0.10 0.35 0.10 0.30 0.10 0.10 0.30 0.10 0.35 Brazo Portatil CORTE A-A 1 1 2 3 3 3 3 Brazo Portatil Hacia las Parcelas A A Tapa metálica 0.3*0.3*1/8" Cº fc=175 Kg/cm2 CASETA DE HIDRANTE 5 5 5 5 5 5 5 5 5 5 5 PLANTA VÁLVULA DE PURGA ESC: 1/10 ESC: 1/10 1 3 N° ACCESORIO CUADRO DE ACCESORIOS 2 Collarín 1 1/2" - 1", 63mm - 1", 75mm - 1" Válvula de Acople Rápido d 1" PLASSON Tuberia PVC SAP d 1 1/2", 63mm y 75mm Caja de Protección de Concreto f'c=175Kg/cm² Tapa Metálica 0.30x0.30m Grava Codo PVC 1" X 45 Niple Elevador PVC 1" C-10 Codo PVC 1" X 45 Niple elevador PVC 1" C-10 Válvula de bola 1" Válvulas de bolas 1" Reducción PVC 1 1/2" - 1" Ingreso del agua Ingreso del agua 3 5 5 5 5 5 5 5 Grava TRABAJOS A REALIZAR: - Instalacion de Cajas de concreto F'c= 175Kg/cm2 en Caseta de Hidrantes 267 und. - Instalacion de Hidrantes 120 und. - Instalacion de Cajas de concreto F'c= 175Kg/cm2 en Valvula de Purga. - Instalacion de Tapas Metalicas 0.30x0.30m e=3/16". ESCALA: MEJORAMIENTO Y AMPLIACION DE RIEGO TECNIFICADO PROYECTO: PLANO : DISEÑO: DIBUJO: FECHA: LAMINA N°: UBICACIÓN: INDEPENDENCIA ANCASH REGIÓN PROVINCIA HUARAZ DISTRITO \W0.8;OA-03 INDICADA LOCALIDAD VALVULA DE PURGA Y CASETA DE HIDRANTE ETAPA :
