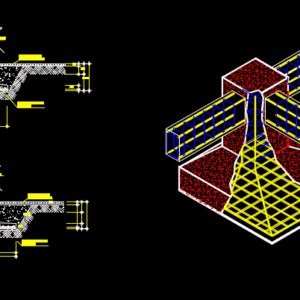

Zata isolated construction detail ground; alsado – iso

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

shoe, reinforced concrete, specification in details., reinforced concrete shoe, t.m.a., shoe, variable, poor concrete template, fc ‘, t.m.a., armed in both directions., reinforced concrete, structural axonometric, firm with mesh, welded steel, cm., fc ‘, poor concrete template, armed in both directions., welded steel, firm with mesh, cm., variable

Raw text data extracted from CAD file:

ZAPATA. Z 5. Concreto armado F'c= 250Kg/cm2. F'C= 250 Kg/cm2. Especificacion en detalles. ZAPATA DE CONCRETO ARMADO T.M.A. 3/4". Z 3. ZAPATA. 0.10 0.20 variable 0.30 0.50 Plantilla de concreto pobre Fc' 100kg/cm. 1.50 #5@20 T.M.A. 3/4". Armado en ambas direcciones. Concreto armado F'c= 250Kg/cm2. AXONOMETRICO ESTRUCTURAL (ZAPATA). 6#6 Firme armado con malla electrosoldada 10x10-6,6 E#2@15 cm. Fc' 100kg/cm. Plantilla de concreto pobre 1.50 0.50 0.30 Armado en ambas direcciones. #5@20 0.20 6 v. #6 electrosoldada 10x10 - 6/6 Firme armado con malla E#2@15 cm. 0.60 variable 0.10
