Joints – – Parapet DWG Block for AutoCAD

Joints – – Parapet DWG Block for AutoCAD

Steel and glass roof structure

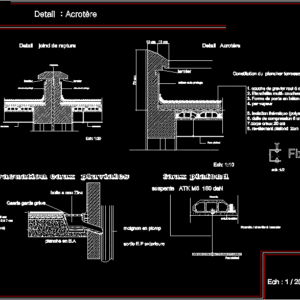

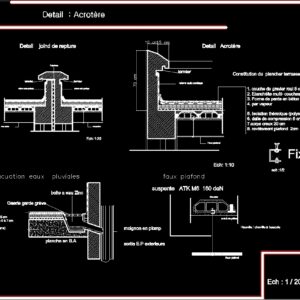

Drawing labels, details, and other text information extracted from the CAD file (Translated from French):

drip, self-protection, layer of gravel, sealing layers cm, concrete slope of cm, by steam, thermal insulation, compression slab cm, hollow cm, ceiling covering, construction of the terrace floor, false ceiling, ech, fixation, drip, self-protection, false ceiling, self-protection, drip, Polystirene, detail joind of repture, ech:, detail acroter, water box zinc, board in b.a, gaerie guard strike, stump in plomp, output e.p exterieure, layer of gravel, ceiling covering, hollow cm, compression slab cm, thermal insulation, by steam, concrete slope of cm, sealing layers cm, rainwater evacuation, false ceiling, Suspension atk dan, false ceiling, hourdis, plaster coated, ankle ankle socks, ech

Raw text data extracted from CAD file:

larmier releve auto protege 1. couche de gravier roul 5 cm 2. Etanchéite multi- couches 1.5 cm 3. Forme de pente en béton de 0 à 7 cm 4. par vapeur 5. Isolation thérmique (polystirene) 6. dalle de compression 5 cm 7.corps creux 20 cm 8. revétement plafond 2cm Constitution du plancher terrasse \f@Gulim|b0|i0|c129|p34;Detail : Acrot\f@Gulim|b0|i0|c0|p34;è\f@Gulim|b0|i0|c129|p34;re\fVineta BT|b0|i0|c0|p82; Faux plafond ech :1/2 Fixation larmier releve auto protege Faux plafond Faux plafond releve auto protege larmier Polystirene Detail joind de repture Ech: 1:20 Ech: 1:10 Detail Acrotére boite a eau Zinc planche en B.A Gaerie garde grève moignon en plomp sortie E.P exterieure 1. couche de gravier roul 5 cm 8. revétement plafond 2cm 7.corps creux 20 cm 6. dalle de compression 5 cm 5. Isolation thérmique (polystirene) 4. par vapeur 3. Forme de pente en béton de 0 à 7 cm 2. Etanchéite multi- couches 1.5 cm Evacuation eaux pluviales faux plafond suspente ATK M6 160 daN Faux plafond Hourdis enduit de plâtre Hourdis / cheville à bascule 70 cm 15 cm 10 cm Ech : 1 / 20
