Joists And Nerves DWG Block for AutoCAD

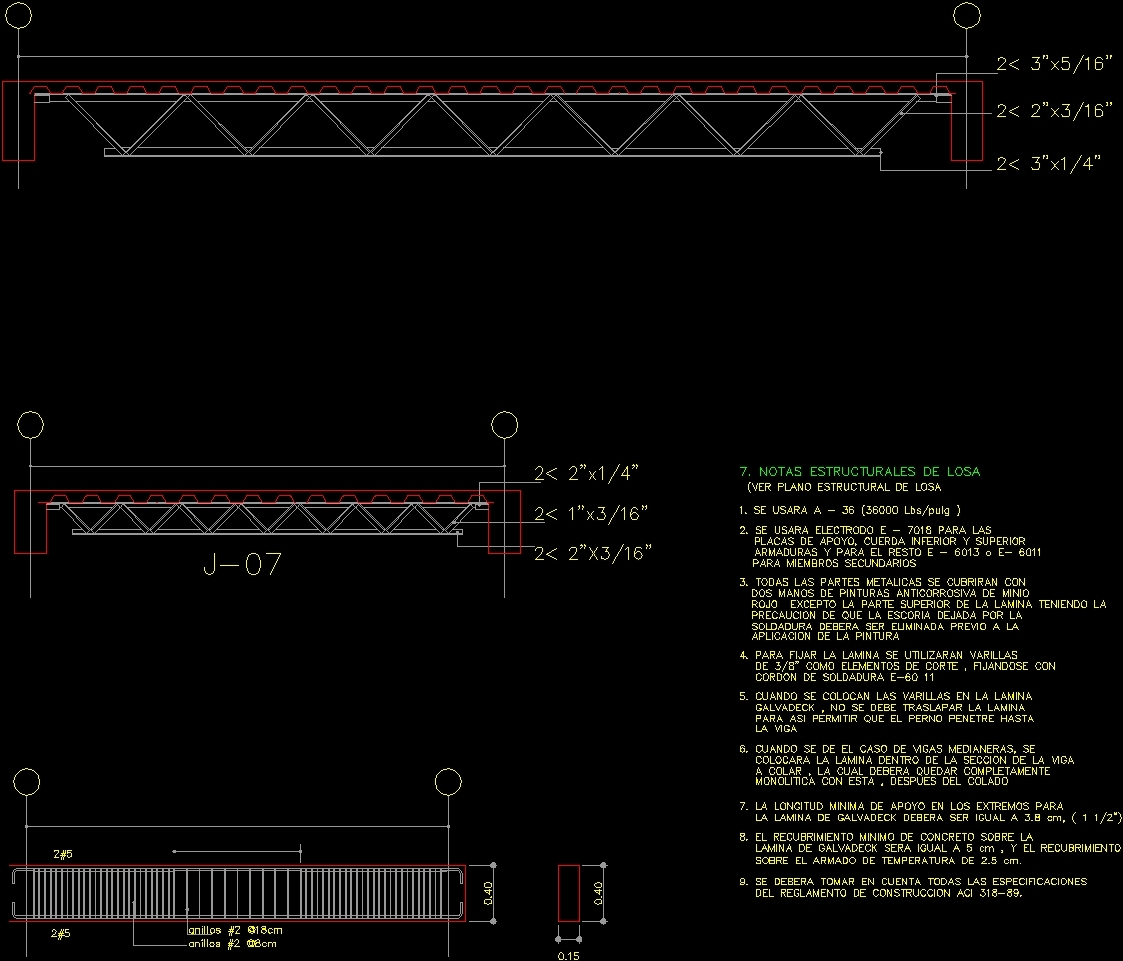

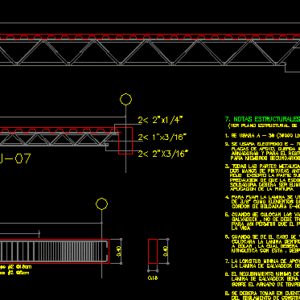

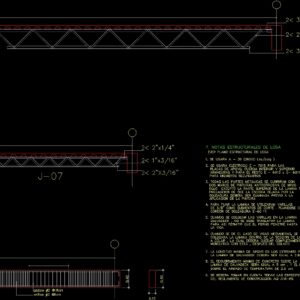

Joists and nerves of structure

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

the minimum coating of concrete on the, rings, galvadeck sheet will be equal cm the coating, of the construction regulation aci, all specifications should be taken into account, on the temperature setting of cm., the galvadeck sheet should be the same, red except the top of the sheet having the, structural plan of slab, the minimum length of support at the ends for, monolithic with this after casting, strain which should be completely, place the sheet inside the section of the beam, when the case of beams is, to allow the bolt to penetrate, galvadeck should not overlap the sheet, when the rods are placed on the sheet, Weld, of how cutting elements are fixed with, To fix the sheet, rods will be used, application of paint, welding should be removed prior to, caution that the slag left by the, for secondary members, armor for the rest, upper lower rope plates, two hands of anticorrosive paints of minium, it will be used, all metal parts will be covered with, electrode will be used for, the beam, structural slab notes

Raw text data extracted from CAD file:

\A1;0.40 \A1;0.40 \A1;0.15 8. EL RECUBRIMIENTO MINIMO DE CONCRETO SOBRE LA 0.15 2#5 2#5 anillos #2 @18cm anillos #2 @8cm 0.4 LAMINA DE GALVADECK SERA IGUAL A 5 cm , Y EL RECUBRIMIENTO DEL REGLAMENTO DE CONSTRUCCION ACI 318-89. 9. SE DEBERA TOMAR EN CUENTA TODAS LAS ESPECIFICACIONES SOBRE EL ARMADO DE TEMPERATURA DE 2.5 cm. 0.4 2< 2"x1/4" 2< 1"x3/16" 2< 2"X3/16" J-07 LA LAMINA DE GALVADECK DEBERA SER IGUAL A 3.8 cm, ( 1 1/2") ROJO EXCEPTO LA PARTE SUPERIOR DE LA LAMINA TENIENDO LA 2< 3"x1/4" (VER PLANO ESTRUCTURAL DE LOSA 7. LA LONGITUD MINIMA DE APOYO EN LOS EXTREMOS PARA MONOLITICA CON ESTA , DESPUES DEL COLADO A COLAR , LA CUAL DEBERA QUEDAR COMPLETAMENTE COLOCARA LA LAMINA DENTRO DE LA SECCION DE LA VIGA 6. CUANDO SE DE EL CASO DE VIGAS MEDIANERAS, SE PARA ASI PERMITIR QUE EL PERNO PENETRE HASTA GALVADECK , NO SE DEBE TRASLAPAR LA LAMINA 5. CUANDO SE COLOCAN LAS VARILLAS EN LA LAMINA CORDON DE SOLDADURA E-60 11 DE 3/8" COMO ELEMENTOS DE CORTE , FIJANDOSE CON 4. PARA FIJAR LA LAMINA SE UTILIZARAN VARILLAS APLICACION DE LA PINTURA SOLDADURA DEBERA SER ELIMINADA PREVIO A LA PRECAUCION DE QUE LA ESCORIA DEJADA POR LA PARA MIEMBROS SECUNDARIOS ARMADURAS Y PARA EL RESTO E - 6013 o E- 6011 PLACAS DE APOYO, CUERDA INFERIOR Y SUPERIOR DOS MANOS DE PINTURAS ANTICORROSIVA DE MINIO 1. SE USARA A - 36 (36000 Lbs/pulg ) 3. TODAS LAS PARTES METALICAS SE CUBRIRAN CON 2. SE USARA ELECTRODO E - 7018 PARA LAS LA VIGA 7. NOTAS ESTRUCTURALES DE LOSA 2< 2"x3/16" 2< 3"x5/16"

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	autocad, barn, block, cover, dach, DWG, hangar, joists, lagerschuppen, roof, shed, structure, terrasse, toit
