Latrines DWG Section for AutoCAD

Latrines DWG Section for AutoCAD

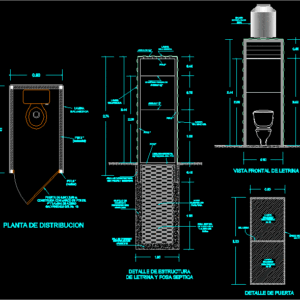

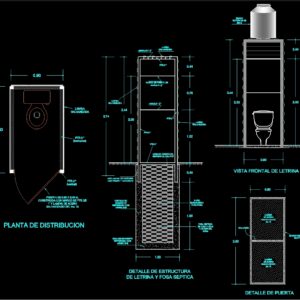

Latrines – Details- Plant – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

galvanized sheet, detail of structure of latrine and septic tank, anchoring of structure with stone and concrete, concrete slab, thickness of the ptr, front view of latrine, detail of door, haladera, distribution plant, wall huacaleado for pit

Raw text data extracted from CAD file:

\A1;ANGULO 1 \S1/2; " LAMINA GALVANIZADA PTR 2 " \A1;ANGULOS 1 \S1/2; " LAMINA GALVANIZADA PTR 2 " LAMINA GALVANIZADA \A1;MARCO DE PUERTA DE ANGULO 1 \S1/2; " PTR 2 " DETALLE DE ESTRUCTURA DE LETRINA Y FOSA SEPTICA ANCLAJE DE ESTRUCTURA CON PIEDRA Y CONCRETO LOSA DE CONCRETO, ESPESOR EL DEL PTR PTR 2" VISTA FRONTAL DE LETRINA TINACO ROTOPLAS DE 600 lt PTR 2 " (vertical) PTR 2 " (horizontal) LAMINA GALVANIZADA DETALLE DE PUERTA MARCO DE PUERTA DE PTR 1" LAMINA DE ACERO GALVANIZADO No 18 LAMINA DE ACERO GALVANIZADO No 18 HALADERA PUERTA DE 0.80 X 2.00 m, CONSTRUIDA CON MARCO DE PTR DE 1" Y LAMINA DE ACERO GALVANIZADO DEL No. 18 PLANTA DE DISTRIBUCION CASTILLO DE CONCRETO REFORZADO CON ARMEX 5/16 MURO HUACALEADO PARA FOSA DALA DE CONCRETO REFORZADO CON ARMEX 5/16 FOSA SEPTICA DE 1.00 X 1.50 m Y ALTURA DE 2.00m 0.90 1.50 2.74 2.44 2.00 1.22 0.78 0.44 0.45 1.55 1.00 0.90 2.44 2.00 2.00 0.44 0.80 2.00

Language	Spanish
Drawing Type	Section
Category	Furniture & Appliances
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, details, DWG, furniture, latrines, lavabo, meubles, möbel, móveis, pia, plant, section, shower, sink, toilet, toilette, waschbecken, WC
