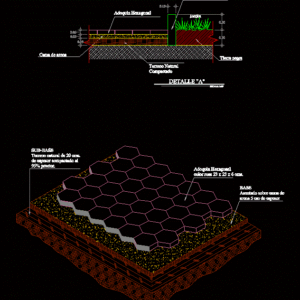

DWG file detailing placement of hexagonal paving stone; It includes section and isometric measures and specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pink hexagonal adoquin cms., base seated on bed of sand cm thick, natural land of cms. of compacted thickness to the proctor., unscaled, isometric, sand bed, compacted natural land, hexagonal adoquin, garden, black earth, sardinel peraltado concrete, scale, detail

Raw text data extracted from CAD file:

\A1;0.09 \A1;0.05 \A1;0.06 \A1;0.20 \A1;0.20 \A1;0.10 Adoquin Hexagonal color rosa 23 x 23 x 6 cms. BASE Asentado sobre cama de arena 5 cm de espesor SUB-BASE Terreno natural de 20 cms. de espesor compactado al 95% proctor. (Colocación de Adoquin) SIN ESCALA ISOMETRICO Cama de arena Terreno Natural Compactado Adoquin Hexagonal Jardin Tierra negra Sardinel Peraltado Concreto f´c=150 Kg/cm² 0.09 0.05 0.06 0.20 0.20 0.10 ESCALA 1:50 DETALLE "A"

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Garden / Park
