Losa Cenital DWG Block for AutoCAD

Losa Cenital DWG Block for AutoCAD

Aerial Extreme slab boundary

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

slab scale detail, pend., reinforced concrete with var mesh for overhead ventilation, beam with long crown. hoops, in blocks of, vertical in, beam with long crown. hoops, square in thick, in durock

Raw text data extracted from CAD file:

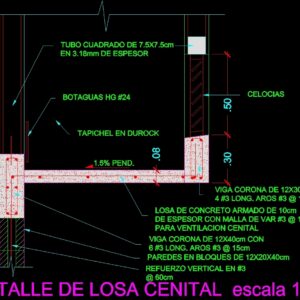

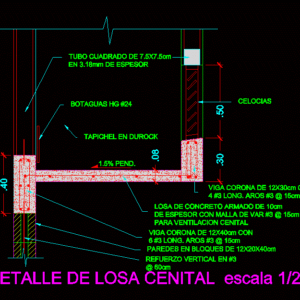

\A1;.08 \A1;.30 \A1;.40 \A1;.50 \A1; DETALLE DE LOSA CENITAL escala 1/20 1.5% PEND. \A1;LOSA DE CONCRETO ARMADO DE 10cm DE ESPESOR CON MALLA DE VAR #3 @ 15cm PARA VENTILACION CENITAL 5 5 5 VIGA CORONA DE 12X40cm CON 6 #3 LONG. AROS #3 @ 15cm \A1;PAREDES EN BLOQUES DE 12X20X40cm \A1;REFUERZO VERTICAL EN #3 @ 60cm \A1;BOTAGUAS HG #24 \A1;CELOCIAS 5 \A1; VIGA CORONA DE 12X30cm CON 4 #3 LONG. AROS #3 @ 15cm \A1;TUBO CUADRADO DE 7.5X7.5cm EN 3.18mm DE ESPESOR \A1;TAPICHEL EN DUROCK

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	aerial, autocad, barn, block, boundary, cover, dach, DWG, extreme, hangar, lagerschuppen, losa, roof, shed, slab, structure, terrasse, toit
