Mall – Shopping DWG Block for AutoCAD

Shopping

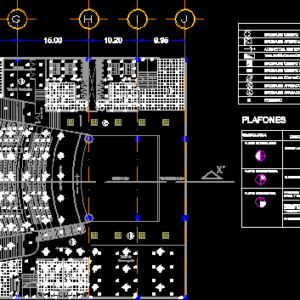

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

access, restrooms men, restrooms women, general offices, area, wardrobe, orchestra pit, stage, ups, lockers, foyer, ramp, low, duct, workshop, set design, production workshop, dressing room, warehouse and, services , dressing rooms, men, women, cellar, storage, sewing, room, rest, trascennial, symbology, description, key, observations, system, steel, model, ceiling, Pan-American plaster on gutters, metal, perforated metal panel, ceiling finish, metal sheets and main tees, and secondaries, white paste and texture, metal gutters, nova, serpentine, smooth ceiling, plafon based gypsum board, outlet center, exit of flying buttress, underground connection, loading center boards, exit Double polarized contact, single damper output, three-way damper output, register, base material plate, wire rod fasteners, end panel, end of center for ceiling, extractor grid ire, brand innes gqr model, air injector grid, brand innes gma model, armstrong brand plafon, model dune square lay

Raw text data extracted from CAD file:

ACCESO 15.00 15.00 15.00 16.60 16.60 16.60 10.20 9.95 N.P.T. + 1.10 N.P.T. + 1.20 Sanitarios Hombres Sanitarios Mujeres Oficinas Generales Area de Guardaropa Foso de la Orquesta ESCENARIO SUBE SUBE TAQUILLAS N.P.T. + 1.20 N.P.T. + - 0.00 FOYER SUBE RAMPA SUBE RAMPA SUBE SUBE N.P.T. + 1.20 N.P.T. + 1.20 N.P.T. + - 0.00 BAJA RAMPA DUCTO Taller de Escenografia Taller de Produccion SUBE N.P.T. + - 0.00 N.P.T. - 2.00 Camerino Privado 01 Camerino Privado 02 SUBE Bodega y Servicios Camerinos Hombres Camerinos Mujeres Bodega Almacen Taller de Costura Sala de Descanso X' TRASESCENARIO SUBE X SIMBOLOGIA DESCRIPCION CLAVE 1 OBSERVACIONES SISTEMA LOSACERO MODELO a b PLAFONES YESO PANAMERICANO SOBRE CANALETAS METALICAS MODULOS DE 61 X 61 CM PANEL METALICO PERFORADO PANEL METALICO PERFORADO DE 2X 6 ESPESOR .04 CON SUSPENSIO0N VISIBLE PLAFON ACABADO INICIAL LAMINAS METALICAS Y TES PRINCIPALES Y SECUNDARIAS PASTA Y TEXTURA COLOR BLANCO CANALETAS METALICA NOVA SERPENTINA PLAFON LISO PLAFON A BASE DE TABLERO DE YESO c SALIDA DE CENTRO SALIDA DE ARBOTANTE ACOMETIDA SUBTERRANEA TABLEROS CENTROS DE CARGA SALIDA DE CONTACTO DOBLE POLARIZADO SALIDA DE APAGADOR SENCILLO SALIDA DE APAGADOR DE TRES VIAS REGISTRO Lamina de losacero seccion 4 calibre 22 de IMSA o similar Malla electrosoldada 6-6,10-10 colocada con soportes de concreto prefabricado Capa de compresion de concreto fc=200kg/cm2 espesor 7 cm PLAFON MATERIAL BASE SUJETADORES DE ALAMBRON SUJETADORES DE ALAMBRON PARA PLAFLON @ 60 CM A PLAFON ACABADO FINAL 1 A a 1 A a 1 A c 1 A c 1 A c 1 A c 1 A c 1 A a 1 A a 1 A a 1 A a 1 A a 1 A c 1 A c 1 A c 1 A c 1 A c SALIDA DE CENTRO PARA PLAFON SALIDA DE CENTRO PARA PLAFON REJILLA EXTRACTORA DE AIRE MARCA INNES MODELO GQR REJILLA INYECTORA DE AIRE MARCA INNES MODELO GMA PLAFON MARCA ARMSTRONG MODELO DUNE SQUARE LAY 600mm x 600mm x 15mm 1 A a E F G H 2 3 4 5 5 5 5 5 5 I J 5 5

Language	Spanish
Drawing Type	Block
Category	Retail
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, block, commercial, DWG, mall, market, shopping, shopping center, supermarket, trade
