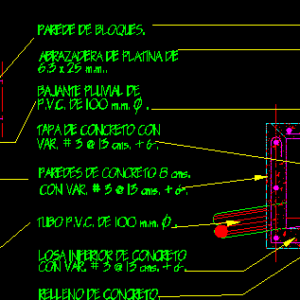

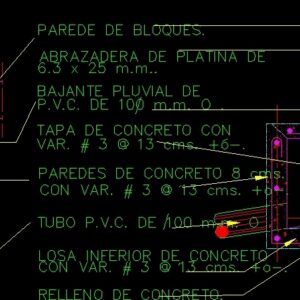

Manhole to the foot of rain water downpipe

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Wall of blocks., Platinum clamp, Mm, Downpour of, P.v.c. Of m.m., Concrete cover with, Var. Cms., Concrete walls cms., With var. Cms., Tube p.v.c. Of m.m., Concrete filler., Concrete bottom slab, With var. Cms.

Raw text data extracted from CAD file:

\A1;.46 \A1;.08 \A1;.30 \A1;.08 \A1;.46 \A1;.08 \A1;.30 \A1;.08 \A1;.50 \A1;.06 \A1;.36 \A1;.08 5 5 5 5 5 5 5 5 5 5 5 5 PAREDE DE BLOQUES. ABRAZADERA DE PLATINA DE 6.3 x 25 m.m.. BAJANTE PLUVIAL DE P.V.C. DE 100 m.m. O . TAPA DE CONCRETO CON VAR. # 3 @ 13 cms. +ó-. PAREDES DE CONCRETO 8 cms. CON VAR. # 3 @ 13 cms. +o-. TUBO P.V.C. DE 100 m.m. O . RELLENO DE CONCRETO. LOSA INFERIOR DE CONCRETO CON VAR. # 3 @ 13 cms. +o-. \A1; \A1;
