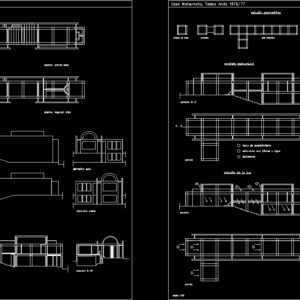

Matsumara House, Kobe, Japan, By Tadao Ando, 1974 DWG Detail for AutoCAD

House Matsumoto, Tadao Ando – Ground – cuts – Details – dimensions – specification

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

definitive grid, succession, base module, insertion of the partition wall, geometric, plant, section, of the light, vaulted, support wall, structure with pillars beams, plant, section, structural, scala, plant: first floor, west elevation, elevation east, south elevation, north elevation, section, scale, tadao ando house, plant: second floor

Raw text data extracted from CAD file:

grid definitiva sucesion modulo de base inserción de la pared del tabique \Lestudio geometrico planta seccion \Lestudio de la luz abovedado muro de sostenimiento estructura con pilares y vigas a' planta seccion a-a' \Lanalisis estructural scala 1:100 a n n planta: primer piso elevacion oeste elevacion este elevacion sur elevacion norte seccion B-B' seccion a-a' escala 1:100 Casa Matsumoto, Tadao Ando 1976/77 Casa Matsumoto, Tadao Ando 1976/77 planta: segundo piso

Language	Spanish
Drawing Type	Detail
Category	Famous Engineering Projects

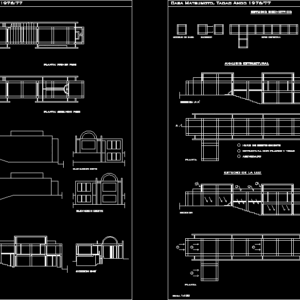

Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	ando, autocad, berühmte werke, cuts, DETAIL, details, dimensions, DWG, famous projects, famous works, ground, house, japan, obras famosas, ouvres célèbres, specification, tadao, tadao ando
