Mediterraneo Chutes DWG Block for AutoCAD

Mediterraneo Chutes DWG Block for AutoCAD

Inclined roof – sSpecifications

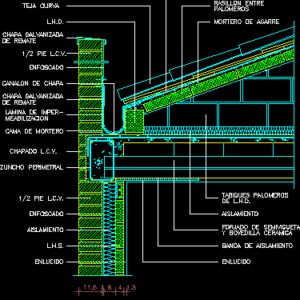

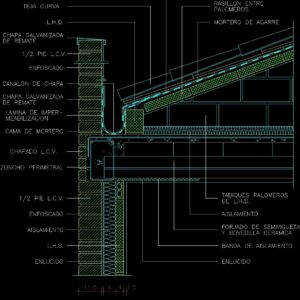

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

forged semivokes, ceramic swirl, plaster, isolation band, inclined cover with front pocket, scale, perimeter zuncho, isolation, plastered, l.h.s., plaster, foot l.c.v., plated l.c.v., foot l.c.v., lamina de, meabilizacion, galvanized sheet, auction, isolation, palomeros partitions, from l.h.d., mortar bed, plastered, galvanized sheet, auction, plate gutter, l.h.d., curved tile, lamina de, meabilizacion, palomeros, rasillon entre, grip mortar

Raw text data extracted from CAD file:

11.5 6 4 1.5 \A1;4 \A1;6 \A1;11.5 \A1;1.5 FORJADO DE SEMIVIGUETA Y BOVEDILLA CERAMICA ENLUCIDO BANDA DE AISLAMIENTO CUBIERTA INCLINADA CON PETO DELANTERO ESCALA 1:10 4 6 1 11.5 1.5 ZUNCHO PERIMETRAL AISLAMIENTO ENFOSCADO L.H.S. ENLUCIDO 1/2 PIE L.C.V. CHAPADO L.C.V. 1/2 PIE L.C.V. LAMINA DE IMPER- MEABILIZACION CHAPA GALVANIZADA DE REMATE AISLAMIENTO TABIQUES PALOMEROS DE L.H.D. CAMA DE MORTERO ENFOSCADO CHAPA GALVANIZADA DE REMATE CANALON DE CHAPA L.H.D. TEJA CURVA LAMINA DE IMPER- MEABILIZACION PALOMEROS RASILLON ENTRE MORTERO DE AGARRE
