Meetings Facade DWG Section for AutoCAD

Meetings Facade DWG Section for AutoCAD

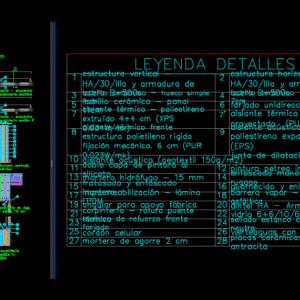

Different encounters facade with window section and plant

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

legend details, vertical structure steel armor, horizontal structure steel armor, simple hollow ceramic brick, double hollow ceramic brick, ceramic honeycomb brick, unidirectional forged, thermal insulation extruded polystyrene cm, thermal insulation projected polyethylene, thermal insulation front structure rigid polyethylene mechanical fixing. cm, acoustic insulation expanded polystyrene cm expansion joint eps, sound insulation, double layer of silicate paint, waterproof petrea paint, waterproof mortar mm, grooved monolayer rough type, mortar, gypsum plaster, waterproofing foil epdm, barrier vapor emulsion asphalt, angle for factory support, lintel has armed, woodworking, safety glass, forged front reinforcing mesh, sealed with neutral silicone, cell cord, dripping gutters, grip mortar cm, ceramic plates anthracite gray, outer wall cm, the facade, b.frente structure, c.carpinteria folding h:, c’.cable.carpentry h:, plant, plant meeting carpentry option, floor plan, carpentry in corner beam cm, d.fachada ceramic finish, ceramic finishing plant, ext, int, ext, int, ext, int, ext, int

Raw text data extracted from CAD file:

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0.02 0.02 0.02 0.02 0.02 0.02 LEYENDA DETALLES 1 estructura vertical - HA/30/IIIa y armadura de acero B-500s 2 estructura horizontal - HA/30/IIIa y armadura de acero B-500s 3 ladrillo cerámico - hueco simple 4cm 4 ladrillo cerámico - hueco doble 7cm 5 ladrillo cerámico - panal 11cm 6 forjado unidireccional 7 aislante térmico - poliestireno extruído 4+4 cm (XPS 0.034W/mk) 7' aislante térmico - polietileno proyectado (PUR 0.028W/mk) 8 aislante térmico frente estructura polietileno rígido fijación mecánica. 6 cm (PUR 0.023W/mk) 9 aislante acústico - poliestireno expandido 1 cm (EPS) junta de dilatación 2cm EPS 10 aislante acústico (geotextil 150g/m2) 11 doble capa de pintura al silicato 12 pintura petrea impermeable 13 mortero hidrófugo - 15 mm 14 enfoscado monocapa tipo rugoso 15 fratasado y enfoscado mortero 16 guarnecido y enlucido de yeso 17 impermeabilización - lámina EPDM 18 barrera vapor - emulsión asfáltica 19 angular para apoyo fábrica 20 dintel HA - Armado 2R Ø10 21 carpintería - rotura puente térmico 22 vidrio 6+6/10/6 de seguridad 23 mallazo de refuerzo frente forjado 24 sellado estanco con silicona neutra 25 cordón celular 26 vierteaguas con goterón 27 mortero de agarre 2 cm 28 placas cerámicas gris antracita 0.11 0.02 0.09 0.07 0.03 0.25 0.02 0.11 0.02 0.07 0.07 Muro exterior - 32 cm a.fachada b.frente estructura 11 16 3 1 8 14 12 11 16 4 7 5 14 12 13 18 c.carpintería abatible H: 2.25m c'.carpintería abatible H: 1.55m planta planta - encuentro carpintería opción 2 planta - encuentro carpintería abatible carpintería en viga de canto 70 cm d.fachada acabado cerámico planta acabado cerámico ext ext ext int int int ext int ext int ext ext ext int int int 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 a b c d 24 b a 24 b a 26 b a 24 a 11 16 4 7 5 27 28 13 18 24 17 b a 17 a a b b 21 22 21 22 23 3 2 19 12 8 23 8 2 19 12 5 13 9 25 26 24 25

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, carpentry, concrete, construction details section, cut construction details, DWG, encounters, facade, lintel, meetings, plant, section, window
