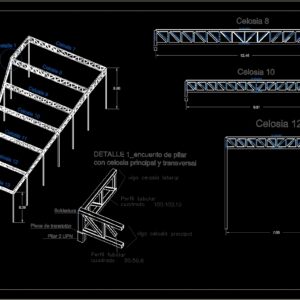

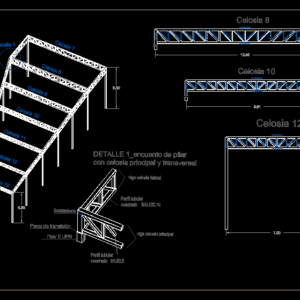

Structure of a metal lattice auditorio.Objetos: General structure of the auditorium in 3 dimensions, details of the encounter between steel columns and shutters and description of the tubular components of some of the lattice composing it.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

e.t.s.a a construction ii course, work group no., scale:, plane no:, students:, April of, leung lidia yenn lópez estela navarrete josé navarro ana pelayo aguueda pino cristina, plane of:, exercise practice, celosia, ipe, ipe, wrought, ipe, celosia, ipe, celosia, celosia, celosia, lateral lattice, detail, detail of pillar with transversal main lattice, transition plate, welding, pillar upn, square tubular profile, beam lateral lattice, beam main lattice, square tubular profile

Raw text data extracted from CAD file:

3 2 4 5 6 7 8 9 10 11 13 14 15 16 17 18 19 20 21 22 12 E.T.S.A Construcción II Curso 2.009-2010 Grupo de trabajo nº : 11 Escala: 1/200 Plano nº: Alumnos: 25 Abril de 2010 Leung Lirio, Lidia Yenn HGO014 López Rodríguez, Estela 35F643 Navarrete Jiménez, José I9812J Navarro Gea, Ana 2M050B Pelayo Rodríguez, Águeda K3L865 Pino Jiménez, Cristina BG514K Plano de: 1 PRÁCTICA DE ACERO_ Ejercicio 2 Celosia 6 IPE 140 IPE 180 IPE 270 IPE200 IPE 140 IPE 140 IPE 140 forjado cubierta_cota 4m 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 140 2UPN 140 2UPN 140 2UPN 140 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 140 2UPN 120 2UPN 120 2UPN 100 2UPN 100 2UPN 120 2UPN 120 2UPN 140 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 140 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 140 P13 P14 P16 P21 P18 P20 P35 P31 P30 P17 P32 P33 P34 P36 P37 P38 P40 P41 P43 P53 P54 P55 P56 P58 P59 P60 P61 P62 P64 P65 P66 P69 P70 P71 P74 P78 P79 P80 P81 P28 P42 P44 P45 P46 P47 P48 P49 P50 P51 P52 P57 P62 P63 P66 P67 P68 P72 P73 P75 P76 P77 P1 P2 P5 P8 P9 P10 P11 P12 P23 P6 P7 P3 P5 P10 P11 P21 P22 P23 P24 P6 P7 P19 P4 2UPN 140 IPE200 IPE 120 IPE 270 IPE 140 2UPN 120 2UPN 120 P13 Celosia 2 Celosia 3 Celosia 4 Celosia 5 Celosia 1 2UPN 140 IPE 140 IPE 220 P13 P14 P25 P26 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 2UPN 120 P15 Celosia 7 Celosia 8 Celosia 9 \A1;1.1604 \A1;7.0935 \A1;8.7142 \A1;6.1345 \A1;2.9256 \A1;7.0944 \A1;4.8559 \A1;4.5766 \A1;4.8560 \A1;4.5118 \A1;6.4471 \A1;3.5977 \A1;3.3328 \A1;3.5864 \A1;5.3434 \A1;0.1700 \A1;3.9300 \A1;3.9319 \A1;3.9819 \A1;12.5425 \A1;3.7678 \A1;4.3025 \A1;8.2401 \A1;4.9593 \A1;2.3161 \A1;4.6059 \A1;5.3434 \A1;0.1700 \A1;3.9300 \A1;5.0729 \A1;3.9319 \A1;3.4905 \A1;3.9079 \A1;10.6117 \A1;3.2386 \A1;4.9287 \A1;5.2023 \A1;3.2036 \A1;5.5924 \A1;5.4617 \A1;4.4758 \A1;3.7758 \A1;4.4748 \A1;7.6134 \A1;2.9952 \A1;5.1717 Celosia 12 Celosia 10 Celosia 7 Celosia 8 Celosia 9 Celosia 10 Celosia 11 Celosia 12 Celosia 13 CC 150x100x6 CC 150x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 150x100x6 2 UPN-140 CC 150x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 50x50x6 CC 50x50x6 CC 50x50x6 CC 50x50x6 CC 50x50x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 50x50x6 CC 50x50x6 2 UPN-140 Celosia 8 2 UPN-140 2 UPN-140 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 150x100x6 CC 150x100x6 2 UPN-140 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 CC 100x100x6 2 UPN-140 Celosia lateral Detalle 1 DETALLE 1_encuento de pilar con celosia principal y transversal \A1;12.45 \A1;0.90 \A1;9.81 \A1;7.00 \A1;6.4315 \A1;8.00 \A1;6.00 \A1;0.90 Placa de transición Soldadura Pilar 2 UPN Perfil tubular cuadrado 100.100.10 viga celosia lateral viga celosia principal Perfil tubular cuadrado 50.50.6
