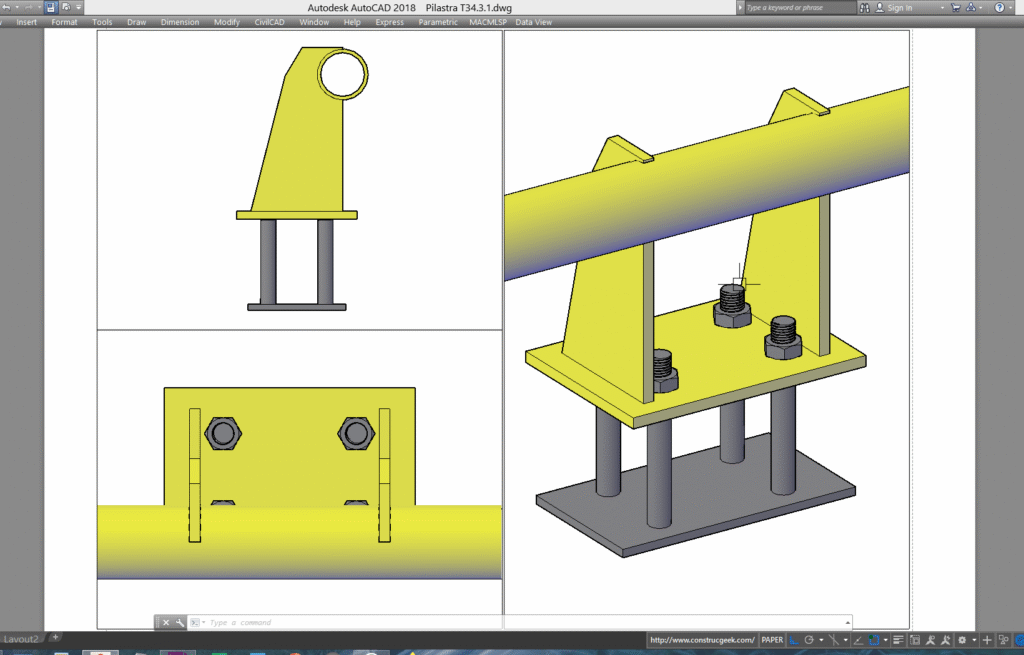

Metal Pilaster for Roadway T34.3.1 SCT – Pilastra metálica para calzada T34.4.1 SCT
ADVERTISEMENT
ADVERTISEMENT
Metal pilaster for T34.4.1 roadway, based on 3″ diameter SHC40 galvanized tube; A36 steel plates of 1.27 and 0.95 thickness with 4 bolts of 1.27 diameter and ASME B18.2.2 nuts, the area of influence 2 m a from center of pilaster
Pilastra metálica para calzada T34.4.1, a base de tubo galvanizado SHC40 de 3″ de diámetro; placas de acero A36 de 1.27 y 0.95 de espesor con 4 pernos de 1.27 de diámetro y tuercas ASME B18.2.2, el área de influencia 2 m a partir de centro de pilastra
| Language | English |
| Drawing Type | Model |
| Category | Roads, Bridges and Dams |
| Additional Screenshots |
    |
| File Type | Array |
| Materials | |
| Measurement Units | Metric |
| Footprint Area | N/A |
| Building Features | |
| Tags | Metal pilaster for roadway T34.3.1 SCT - Pilastra metálica para calzada T34.4.1 SCT |
