Metal Staircase DWG Block for AutoCAD

Metal Staircase DWG Block for AutoCAD

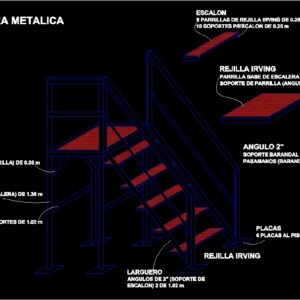

The drawing shows a ladder-based metal angles, sills and grilles irving.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

irving grid, irving grid grills of brackets, grille grille grille grille grille stand, plates to the floor of, of, angle of, angle s, angle of, reinforcement base of, metal staircase

Raw text data extracted from CAD file:

REJILLA IRVING \A1;ESCALON \A1;5 PARRILLAS DE REJILLA IRVING DE 0.25 X 0.89 m \A1;10 SOPORTES P/ESCALON DE 0.25 m REJILLA IRVING PARRILLA BASE DE ESCALERA = 1.02 X 1.02 m SOPORTE DE PARRILLA (ANGULO 2") = 1.02 X 1.02 m \A1;PLACAS \A1;6 PLACAS AL PISO DE 0.17 X 0.20 m \A1;LARGUERO \A1;ANGULOS DE 2" (SOPORTE DE \A1;ESCALON) 2 DE 1.92 m ANGULO DE 2" 4 (SOPORTES DE ESCALERA) DE 1.36 m ANGULO 2" SOPORTE BARANDAL 5 PZAS DE 1.00 m PASAMANOS (BARANDAL) = 9.00 m ANGULO DE 2" 4 (SOPORTES DE PARRILLA) DE 0.30 m SOLERA DE 2" 2 REFUERZOS DE SOPORTES DE 1.02 m ESCALERA METALICA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	angles, autocad, block, drawing, DWG, irving, ladder, metal, shows, stahlrahmen, stahlträger, staircase, steel, steel beam, steel frame, structure en acier
