Multitecho DWG Detail for AutoCAD

Multitecho DWG Detail for AutoCAD

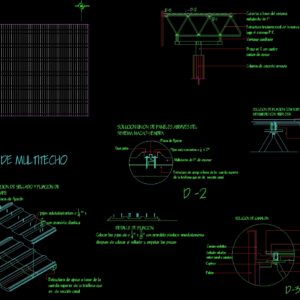

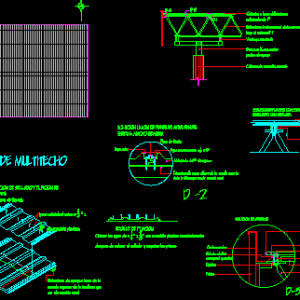

Details roof in base Multitecho

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Base cover of the multistage system of, Square stem, Arm in with four points of support, Multytecho of thickness, Reinforced concrete column, Multytecho of thickness, Self tapping, Base support structure of the upper tridylose rope that is channel section, Fixing plate, Upper tridylose rope, Of fixation with pijas of length, Fixing plate, diagonal, Apply lastoflex sealant to protect exposed foam moisture, Self-tapping screws, Multytecho of thickness, Upper tridylose rope, Gasket, Multi-part cutting, Sikaflex sealant between canalon panel, Metal channel, Faldon, Copletor, Fixing detail, The pieces of plastic washer immediately after placing the sealant tie the pieces, Fixing plate, To put sealer, Multytecho of thickness, Sikaflex white cordon, Self-tapping, Sealing solution, Base support structure of the upper tridylose rope that is channel section, Self-drilling with plastic washer, Fixation solution with intermediate support with tridilose, Union solution of panels through the system, Pipe solution, Three-dimensional structure of the brand under the p.t.

Raw text data extracted from CAD file:

D-1 Cubierta a base del sistema multytecho de 1" D-2 D-3 Vastago cuadrado Brazo en X con cuatro puntos de apoyo multytecho de 1" de espesor Columna de concreto armado D -1 Multytecho de 1" de espesor \A1;Pijas auto roscantes o \S1/4;\H1.429x; x 2" Estructura de apoyo a base de la cuerda superior de la tridilosa que es de sección canal D -2 Placa de fijacion cuerda superior de la tridilosa \A1;placa de fijacion con 2 pijas o \S1/4;\H1.429x;" x 3" de longitud placa de fijacion Diagonal D-3 aplicar sellador lastoflex para proteger espuma expuesta a humedad pijas de 3" auto roscantes multytecho de 1" de espesor cuerda superior de la tridilosa Tapa junta DESPIECE DE MULTITECHO Sellador sikaflex entre panel y canalon Canalon metalico Faldon Copletor DETALLE DE FIJACION \A1;Colocar las pijas de o \S1/4;" x \S7/8;" con arandela plastica inmediatamente despues de colocar el sellador y empatar las piezas placa de fijación para colocar sellador Multytecho de 1" de espesor \A1;sellador sikaflex 1 - a blanco cordon o \S3/8; " \A1;pijas autoroscantes o \S1/4; " x 3" SOLUCION DE SELLADO Y FIJACION DE TRASLAPE Estructura de apoyo a base de la cuerda superior de la tridilosa que es de sección canal \A1;pijas autotaladrantes o \S1/4; " x \S7/8;" con arandela plastica SOLUCION DE FIJACION CON SOPORTE INTERMEDIO CON TRIDILOSA SOLUCION UNION DE PANELES ATRAVES DEL SISTEMA MACHO-HEMBRA SOLUCION DE CANALON Estructura tridimencional de la marca Adrian´s bajo el sistema P.T. H M 10 6

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Plastic
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, barn, base, cover, dach, DETAIL, details, DWG, hangar, lagerschuppen, roof, shed, structure, terrasse, toit
