Nursing Home, Rest Home 2D DWG Plan for AutoCAD

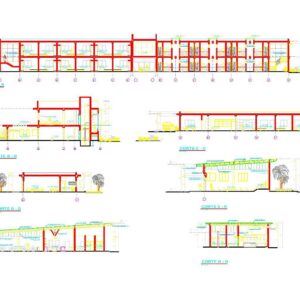

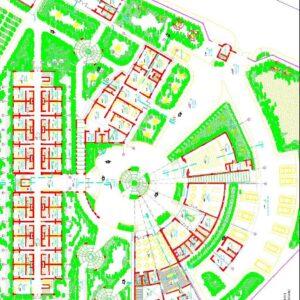

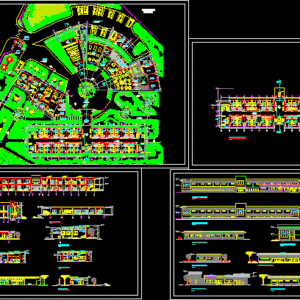

Plan, elevation and sectional view of nursing home. It has ground and second level with lot of open spaces and vegetation and ample car parking lot. It is an circular shaped architectural plan. The first and second level has 24 double bed room (in patients) on each floor. The primary floor has principal entrance,waiting hall, dining hall, lecture room, men and women’s restroom, hairdressing,table games, chapel, administrative block,monitoring rooms, nursing, bio orchards outside. Total footprint area of the plan is approximately 7500 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hospital & Health Centres |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | A/C, Garage, Deck / Patio, Car Parking Lot, Garden / Park |
| Tags | autocad, block, Design, DWG, elderly, nursing home, open, vegetation |
