Onduline – Double roof ceramic tile curves and asphaltic badge Onduline under tile 235 over panel sandwich Ondutherm

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail, Double ceramic tile curve asphalt plate onduline under tile over panel sandwich ondutherm, Onduline roof tile gutter gutter seen panel sandwich plywood extruded polystyrene insulation steel nail with pvc head wooden slat for panel closure wood sleeping panel zinc plating ventilation duct wood walls ridge tile mortar wood flooring, detail, Double ceramic tile curve asphalt plate onduline under tile over panel sandwich ondutherm, Onduline roof tile gutter gutter seen panel sandwich plywood extruded polystyrene insulation steel nail with pvc head wooden slat for panel closure wood sleeping panel zinc plating ventilation duct wood walls ridge tile mortar wood flooring

Raw text data extracted from CAD file:

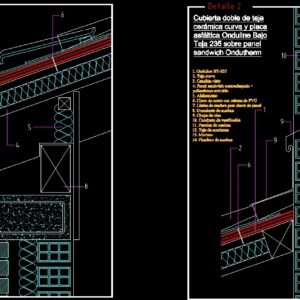

Detalle 1 3 2 1 7 5 8 4 6 \LCubierta doble de teja cerámica curva y placa asfáltica Onduline Bajo Teja 235 sobre panel sandwich Ondutherm 1. Onduline BT-235 2. Teja curva 3. Canalón visto 4. Panel sandwich contrachapado + poliestireno extruído 5. Aislamiento 6. Clavo de acero con cabeza de PVC 7. Listón de madera para cierre de panel 8. Durmiente de madera 9. Chapa de zinc 10. Conducto de ventilación 11. Paredes de madera 12. Teja de cumbrera 13. Mortero 14. Picadero de madera Detalle 2 6 9 9 10 9 9 7 11 5 1 4 2 \LCubierta doble de teja cerámica curva y placa asfáltica Onduline Bajo Teja 235 sobre panel sandwich Ondutherm 1. Onduline BT-235 2. Teja curva 3. Canalón visto 4. Panel sandwich contrachapado + poliestireno extruído 5. Aislamiento 6. Clavo de acero con cabeza de PVC 7. Listón de madera para cierre de panel 8. Durmiente de madera 9. Chapa de zinc 10. Conducto de ventilación 11. Paredes de madera 12. Teja de cumbrera 13. Mortero 14. Picadero de madera
