Panel DWG Detail for AutoCAD

Panel detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

metal structure, crossbar, upright, schuco international k.g., branch in Spain, denomination, system, system for metal structure

Raw text data extracted from CAD file:

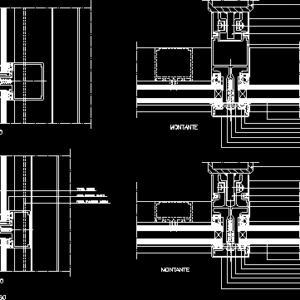

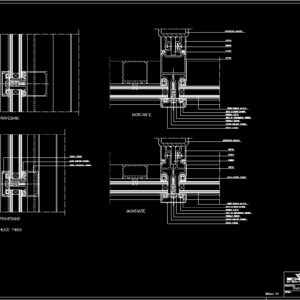

ESTRUCTURA METALICA 160780 205645 160740 218803 218803 160730 205645 160780 ESTRUCTURA METALICA VIDRIO CLIMALIT 6+12+6 JUNTA EXTERIOR 204698 PRESOR 112710 CINTA DE ESTANQUIDAD 298296 TORNILLO 205453 PLETINA AISLANTE 204602 TAPETA 112720 TAPETA 112720 PLETINA AISLANTE 204602 TORNILLO 205453 CINTA DE ESTANQUIDAD 298296 PRESOR 112710 JUNTA EXTERIOR 204698 VIDRIO CLIMALIT 6+12+6 JUNTA INTERIOR 204507 PERFIL TRAVESANO 162540 JUNTA INTERIOR 204506 TAPETA 160620 SISTEMA SCHUCO FW50 TRAVESANO MONTANTE MONTANTE TRAVESANO SCHUCO INTERNATIONAL K.G. Sucursal en Espana Velazquez 138 Madrid 28006 DENOMINACION SISTEMA FW 50 Sistema para estructura metalica FW50TPE.DWG ESCALA 1:1
