Panel Systems DWG Detail for AutoCAD

Panel Systems DWG Detail for AutoCAD

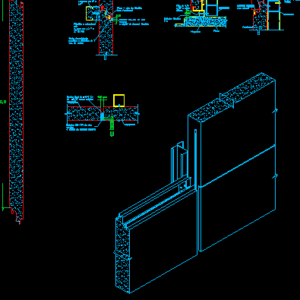

Details panels used in walls – Plant – Elevation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

crossbar, archipelago, plate fixing clip for archipelago, sealer of dow corning silpruf of general electric, fixing structure with pails of de lon., electric masking tape of cm. wide, archipelago, pija of each, sikaflex sealant, structure, firm, neoprene, archipelago, pija of each, structure, special frame, archipelago, sealer of dow corning silpruf of general electric, archipelago, backer rod of at least

Raw text data extracted from CAD file:

0,8 5 Larguero de 2" x 1.5" Arquipanel Placa - clip de fijación para Arquipanel Sellador DC-791 de dow corning o silpruf de General Electric Fijación a estructura con 2 pijas de 1/4 " x 2" de lon. Cinta desmoldante masking o eléctrica de 1 cm. de ancho Arquipanel Pija de 1/4 " x 2" a cada 50cm. Sellador Sikaflex 1-a Estructura Firme Neopreno Arquipanel Pija de 1/4 " x 2" a cada 50cm. Pija de 1/4 " x 3/4" a cada 50cm. Estructura Moldura especial (por otros) Moldura especial (por otros) 0,025 0,01 12.5 mm Arquipanel 4mm (mínimo) 7mm (máximo) Sellador DC-791 de dow corning o silpruf de General Electric Arquipanel Backer Rod de \C7;Ø 3/4" (y de \C7;Ø 5/8" como mínimo opcional) 0.0508 4.00 0.0508 4.00

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	adobe, autocad, bausystem, construction system, covintec, DETAIL, details, DWG, earth lightened, elevation, erde beleuchtet, losacero, panel, panels, plant, plywood, sperrholz, stahlrahmen, steel framing, système de construction, systems, terre s, walls
