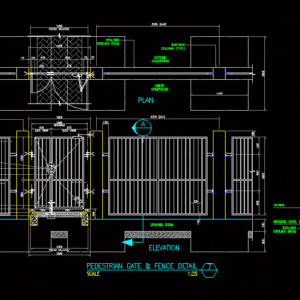

PEDESTRIAN GATE

Drawing labels, details, and other text information extracted from the CAD file:

scale, paved walkway, gate height, plan, elevation, concrete footing, section-a, outside compound, inside compound, paving, ground beam

Raw text data extracted from CAD file:

1:1 SCALE 1:1 SCALE 300 500 EQ 875 GATE WING 1350 OPENING 975 1400 PAVED WALKWAY 1500 1850 GATE HEIGHT 580 890 430 150 400 800 150 1500 EQ 1900 875 475 GATE WING 1400 PAVED WALKWAY 150 300 500 100 1400 1800 3000 (MAX) 150 2000 3000 (MAX) 150 830 145 1500 75 75 400 800 75 75 250 EQ 475 688 1030 5 5 5 5 5 5 5 <>\XGATE HEIGHT 5 5 5 5 5 5 5 5 5 EQ EQ 5 5 5 <>\XGATE WING 5 5 <>\XPAVED WALKWAY <>\XGATE WING <>\XOPENING 5 5 5 <>\XPAVED WALKWAY PEDESTRIAN GATE & FENCE DETAIL 7 1:25 PLAN ELEVATION 5 <> (MAX) 5 A \W6.14286; 32 X 32mm \W4.33333; PAINTED STEEL BOX SECTION FRAME \W1.90476; HEAVY DUTY CYLINDER \W4.80952; DEAD LOCK KEYED BOTH SIDE OF THE GATE \W7.09524; WITH 75Nos OF \W4.14286; KEYS FOR TENANTS \W5.61905; 8 X 25mm HIGH \W1.52381; GAUGE PAINTED STEEL \W4.09524; VERTICAL SECTIONS WELDED TO MAIN FRAME CONCRETE FOOTING \W1.52381; FLOOR MOUNTED LOCKABLE FACILITY ON SMALLER GATE \W1.33333; WITH A PADLOCK \W0.66667; (06Nos OF KEYS) 5 300X300 COLUMN (TYP.) SECTION-A 3000 (MAX) \W4.66667; 300X300 COLUMN (TYP.) 5 OUTSIDE COMPOUND INSIDE COMPOUND \W4.33333; 300x300 GROUND BEAM GROUND LEVEL \W5.14286; (VARIES) GROUND LEVEL (VARIES) PAVING 5 5 5 5 5 \W4.66667; 300X300 COLUMN (TYP.) GROUND BEAM \W4.33333; 300x300 GROUND BEAM OUTSIDE COMPOUND INSIDE COMPOUND 5 EQ 5 5

Language	English
Drawing Type	Block
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units	Imperial
Footprint Area
Building Features
Tags	autocad, block, Construction detail, DWG, gate, pedestrian
