Peeling Machine / Potato DWG Block for AutoCAD

Peeling Machine / Potato DWG Block for AutoCAD

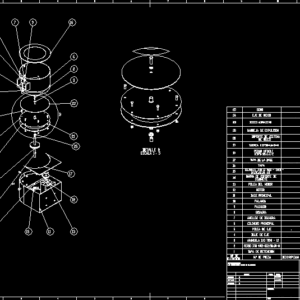

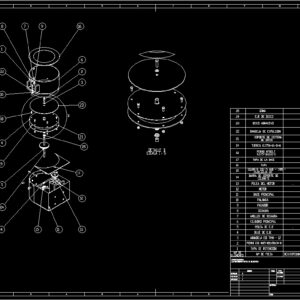

Drawing of the entire cylindrical potatoe peeler machine centrifuge also indicated materials and other specifications.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

san andres major university, engineering faculty, electromechanical engineering, specifications:, dimensions are in millimeters, rubber, disc shaft, astm steel, abrasive disk, ejection tray, system support, disk, hfbolt bolt, lid base, cap, support bar, bearing, motor pulley, motor, main base, lever, pin, hinge, hinge rings, main cylinder, shaft pulley, shaft bushing, retainer cap, , element, part number, description, quantity, plane, number, material, detail b, potato peeler, weight :, title :, material :, name, approved, revised, view in explosion, date, signature, drawn

Raw text data extracted from CAD file:

UNIVERSIDAD MAYOR DE SAN ANDRES FACULTAD DE INGENIERIA INGENERIA ELECTROMECANICA ESPECIFICACIONES: LAS DIMENSIONES ESTAN EN MILIMETROS 25 GOMA 1 3 24 EJE DE DISCO 1 2 ACERO ASTM A36 23 DISCO ABRASIVO 1 1 22 BANDEJA DE EXPULSION 1 21 SOPORTE DE SISTEMA DE DISCO 1 7 ACERO AISI 304 19 TUERCA 0.3750-16-D-N 11 18 PERNO HFBOLT 0.375-16x1x1-C 11 17 TAPA DE LA BASE 1 10 ACERO AISI 1015 16 TAPA 1 9 ACERO AISI 304 15 COJINETE ISO 15 ABB - 1920 - 14,DE,AC,14_68 1 14 BARRA DE SOPORTE DE COJINETE 1 13 POLEA DEL MOTOR . 1 12 MOTOR 1 11 BASE PRINCIPAL 1 8 ACEROAISI 1015 10 PALANCA 1 9 PASADOR 1 8 BISAGRA 1 7 ANILLOS DE BISAGRA 1 6 CILINDRO PRINCIPAL 1 5 ACERO AISI 304 5 POLEA DE EJE . 1 4 BUJE DE EJE 1 4 ACERO AISI 1015 3 ARANDELA ISO 7090 - 12 2 2 PERNO ISO 4015-M12x50x30-N 1 1 TAPA DE RETENCION 1 6 ACERO AISI 304 N.º DE ELEMENTO N.º DE PIEZA DESCRIPCIÓN CANTIDAD PLANO NRO MATERIAL 16 6 2 3 23 21 25 5 24 17 13 11 12 14 15 19 4 18 22 10 7 9 8 1 DETALLE B ESCALA 1 : 5 6 D C B A E F G H A B C 5 4 3 2 1 7 8 9 10 11 12 1 2 3 4 5 6 7 8 PELADORA DE PAPAS PESO: A2 PLANO: 11 DE 11 ESCALA: 1:10 TITULO: MATERIAL: NOMBRE APROBADO REVISADO VISTA EN EXPLOSION FECHA FIRMA DIBUJADO H T T 3/6/2010 3/6/2010 B

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
