Perimeter Wall DWG Block for AutoCAD

Perimeter Wall DWG Block for AutoCAD

STRUCTURE OF A perimeter wall

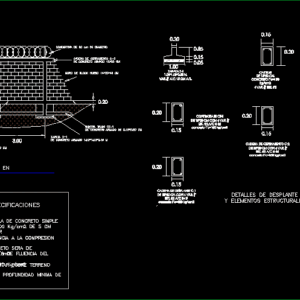

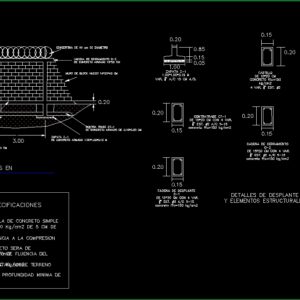

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Note: dimensions in meters, detailing details and structural elements, specifications

Raw text data extracted from CAD file:

\A1;25.00 \A1;10.00 -1.396494699908032 -1.396494699908032 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 A B C D E F G \A1;3.83 \A1;0.25 \A1;2.80 \A1;1.28 \A1;0.25 0.20 NOTA: ACOTACIONES EN METROS 5 5 5 5 5 CONCERTINA DE 60 cm DE DIAMETRO MURO DE BLOCK HUECO 14*20*40 CM ZAPATA Z-1 DE CONCRETO ARMADO 1.00*1.00*0.15 M \A1;ZAPATA Z-1 1.00*1.00*0.15 M VAR. \S3/8;\H1.429x;" A/C 15 CM A/S. \A1;CADENA DE DESPLANTE C-1 DE 15*20 CM CON 4 VAR. \S3/8;\H1.429x;" EST. #2 A/C 5-15 concreto f´c=150 kg/cm2 0.20 0.85 0.15 0.20 0.15 CADENA DE DESPLANTE C-1 DE CONCRETO ARMADO 15*20 CM CADENA DE CERRAMIENTO C-2 DE CONCRETO ARMADO 15*20 CM 1.00 \A1;CASTILL0 DE 15*20 CM CONCRETO f´c=150 kg/cm2 4 VAR. \S3/8;\H1.429x;" EST. #2 0.15 0.20 0.20 0.15 \A1;CONTRATRABE CT-1 DE 15*20 CM CON 4 VAR. \S3/8;\H1.429x;" EST. #2 A/C 5-15 concreto f´c=150 kg/cm2 0.05 0.20 0.15 \A1;CADENA DE CERRAMIENTO C-2 DE 15*20 CM CON 4 VAR. \S3/8;\H1.429x;" EST. #2 A/C 5-15 concreto f´c=150 kg/cm2 CONTRA TRABE CT-1 DE CONCRETO ARMADO DE 0.15*0.20 CM DETALLES DE DESPLANTE Y ELEMENTOS ESTRUCTURALES 0.20 0.20 2.20 0.20 3.00 ESPECIFICACIONES * PLANTILLA DE CONCRETO SIMPLE f´c=100 Kg/cm2 DE 5 CM DE ESPESOR * RESISTENCIA A LA COMPRESION DEL CONCRETO SERA DE f´c=200Kg/cm2 * ESFUERZO DE FLUENCIA DEL ACERO fy=4200 Kg/cm2 * DESPLANTAR SOBRE TERRENO FIRME A UNA PROFUNDIDAD MINIMA DE 1.00 m
