Philharmonic Hall DWG Full Project for AutoCAD

Philharmonic Hall DWG Full Project for AutoCAD

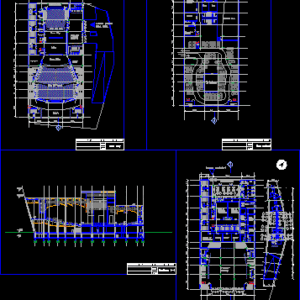

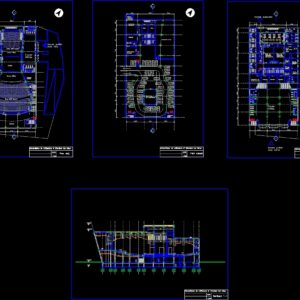

Project for the Philharmonic Hall in Bucharest, Romania, designed by architecture students from fifth year the University of Architecture Ion Mincu in Bucharest .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Romanian):

viewnumber, sheetnumber, buffet, instrument store, workshop, ventilation boiler, thermal boiler, aaa shelter, hydrofoil, water house, explosion space, depot, regrouping, side pocket, backstage, Philharmonic rehearsal room, halls public lobby, administration, public access to the large hall, access to musicians, staircase, university of architecture and urban mining, floor plan, floor plan, basement plan, access to technical rooms, public access to the small hall

Raw text data extracted from CAD file:

VIEWNUMBER VIEWNUMBER VIEWNUMBER SHEETNUMBER \A1;11 \A1;8 \A1;7.8 \A1;7.9 \A1;7.3 \A1;4.1 \A1;6.5 \A1;5.1 \A1;6 \A1;12.9 \A1;8.4 \A1;19.3 \A1;8.2 \A1;8.4 \A1;19.4 \A1;8.4 \A1;3.6 \A1;7.4 \A1;8 \A1;7.7 \A1;7.9 \A1;7.3 \A1;4.1 \A1;6.6 \A1;5.1 \A1;6 \A1;10 \A1;8.4 \A1;19.3 \A1;8.4 \A1;3.6 \A1;7.4 \A1;8 \A1;7.8 \A1;7.9 \A1;7.3 \A1;4.1 \A1;6.6 \A1;5.1 \A1;6 \A1;9.9 \A1;13.3 \A1;9.4 \A1;13.5 \A1;13.3 \A1;9.3 \A1;13.5 \A1;13.3 \A1;9.4 \A1;13.4 \A1;8.2 \A1;8.2 \A1;10.8 \A1;7.9 \A1;9.9 \A1;6.8 \A1;5.4 \A1;4.6 \A1;6.6 \A1;7 Foaier 600mp Scena 90mp Foaier 220mp Sala 240 locuri Bufet Depozit de instrumente Atelier Atelier Atelier Centrala de ventilatie Centrala termica Adapost A.LA. Hidrofor Gospodarie de apa Spatiu explozie Dep. Atelier Dep. Regrupare Buzunar lateral Dep. Dep. Dep. Dep. Dep. Culise Regrupare Sala de repetitii filarmonica Sala de repetitii filarmonica Sali de repetitie publice Lobby Sali de repetitie publice Sali de repetitie publice Sali de repetitie publice Sali de repetitie publice Administratie Acces public sala mare Acces muzicieni scara 1/200 Universitatea de Arhitectura si Urbanism Ion Mincu Plan parter scara 1/200 Universitatea de Arhitectura si Urbanism Ion Mincu Sectiune 1-1 scara 1/200 Universitatea de Arhitectura si Urbanism Ion Mincu Plan etaj scara 1/200 Universitatea de Arhitectura si Urbanism Ion Mincu Plan subsol Scena 120mp Sala 600 locuri Acces camere tehnice Acces camere tehnice Acces public sala mica 1 1 1 1 1 1 +-0.00 +23.72 +28.2 +9.5 +7.1 +13.8 +16.7 +22.9 +6.5 +6.7 +7.1 +5.1 +18.2 -3.5 +6.5 +10.6 +14.2 +15.5 +20.3 +25 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

Language	Other
Drawing Type	Full Project
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	architecture, Auditorium, autocad, cinema, designed, DWG, full, hall, opera, Project, students, Theater, theatre, university, year
