Pipe Trench, Support DWG Block for AutoCAD

Pipe Trench, Support DWG Block for AutoCAD

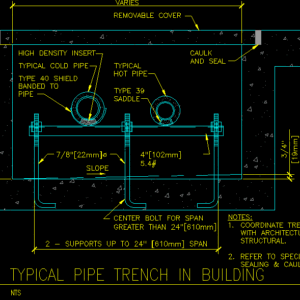

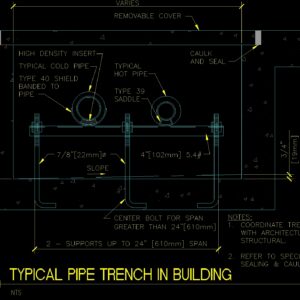

Mechanical piping support installation for the trench

Drawing labels, details, and other text information extracted from the CAD file:

scale, cad detail no.:, date issued:, none, detail title, supports up to span, typical pipe trench in building, nts, notes:, coordinate trench detail with architectural structural. refer to sealing caulking., varies, supports up to span, varies, center bolt for span greater than, type shield banded to pipe, high density insert, typical cold pipe, typical hot pipe, type saddle, removable cover, caulk and seal, slope, typical pipe trench in building, march, none, designer’s note: coordinate trench detail with architectural structural.

Raw text data extracted from CAD file:

SCALE : CAD DETAIL NO.: DATE ISSUED: NONE DETAIL TITLE / \A1;VARIES \A1;2 - SUPPORTS UP TO 24" [610mm] SPAN \A1;VARIES \A1;3/4" # TYPICAL PIPE TRENCH IN BUILDING NTS NOTES: 1. 2. COORDINATE TRENCH DETAIL WITH ARCHITECTURAL & STRUCTURAL. REFER TO SPECIFICATION, SEALING & CAULKING. VARIES 2 - SUPPORTS UP TO 24" [610mm] SPAN VARIES CENTER BOLT FOR SPAN GREATER THAN 24"[610mm] 4"[102mm] 5.4# 7/8"[22mm]d TYPE 40 SHIELD BANDED TO PIPE HIGH DENSITY INSERT TYPICAL COLD PIPE TYPICAL HOT PIPE TYPE 39 SADDLE REMOVABLE COVER CAULK AND SEAL 3/4" [19mm] SLOPE TYPICAL PIPE TRENCH IN BUILDING 15705-6.DWG MARCH 2006 NONE DESIGNER'S NOTE: COORDINATE TRENCH DETAIL WITH ARCHITECTURAL & STRUCTURAL.

Language	English
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, mechanical, pipe, piping, provision, support, trench, wasser bestimmung, water
