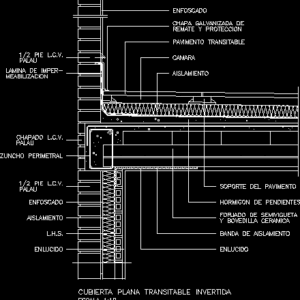

Plane Roof passable and invested

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Galvanized sheet, Auction, Foot l.c.v., Palau, Perimeter groove, Inverted walkable flat roof, scale, Dimensions in cm., Semivigueta forged, Ceramic vase, plaster, Insulation band, Concrete earrings, Floor support, isolation, camera, Walkable floor, Protection shot, Galvanized sheet, isolation, Stuck up, L.h.s., plaster, Foot l.c.v., Palau, Sheet of, Earthmoving, Stuck up, Plated l.c.v., Palau

Raw text data extracted from CAD file:

\A1;4 \A1;6 \A1;11.5 \A1;1.5 CHAPA GALVANIZADA DE REMATE 1/2 PIE L.C.V. PALAU ZUNCHO PERIMETRAL CUBIERTA PLANA TRANSITABLE INVERTIDA ESCALA 1:10 COTAS EN cm. FORJADO DE SEMIVIGUETA Y BOVEDILLA CERAMICA ENLUCIDO BANDA DE AISLAMIENTO HORMIGON DE PENDIENTES SOPORTE DEL PAVIMENTO AISLAMIENTO CAMARA PAVIMENTO TRANSITABLE REMATE Y PROTECCION CHAPA GALVANIZADA DE AISLAMIENTO ENFOSCADO L.H.S. ENLUCIDO 1/2 PIE L.C.V. PALAU LAMINA DE IMPER- MEABILIZACION ENFOSCADO 4 6 1 11.5 1.5 CHAPADO L.C.V. PALAU

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
