Programmable DWG Block for AutoCAD

Programmable DWG Block for AutoCAD

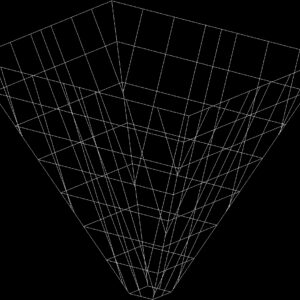

Drawing with autocad Hopper: Hopper configurable; changes top flange and bottom flange; and generates a hopper.

Raw text data extracted from CAD file:

adjustable hopper 3D : -Change lower flange, upper flange and got 3D Model -Break down it and use extrusion -On the four faces you had line to do reinforcement. -Have fun !! Developped By SDU For any question/suggestion: CTRL + CLIC adjustable hopper 3D : -Change lower flange, upper flange and got 3D Model -Break down it and use extrusion -On the four faces you had line to do reinforcement. -Have fun !! Developped By SDU For any question/suggestion: CTRL + CLIC

Language	English
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units	Metric
Footprint Area
Building Features
Tags	aspirador de pó, aspirateur, autocad, block, bohrmaschine, bottom, compresseur, compressor, drawing, drill, DWG, flange, guincho, hopper, kompressor, machine, machine de forage, machinery, máqu, press, rack, staubsauger, top, treuil, vacuum, winch, winde
