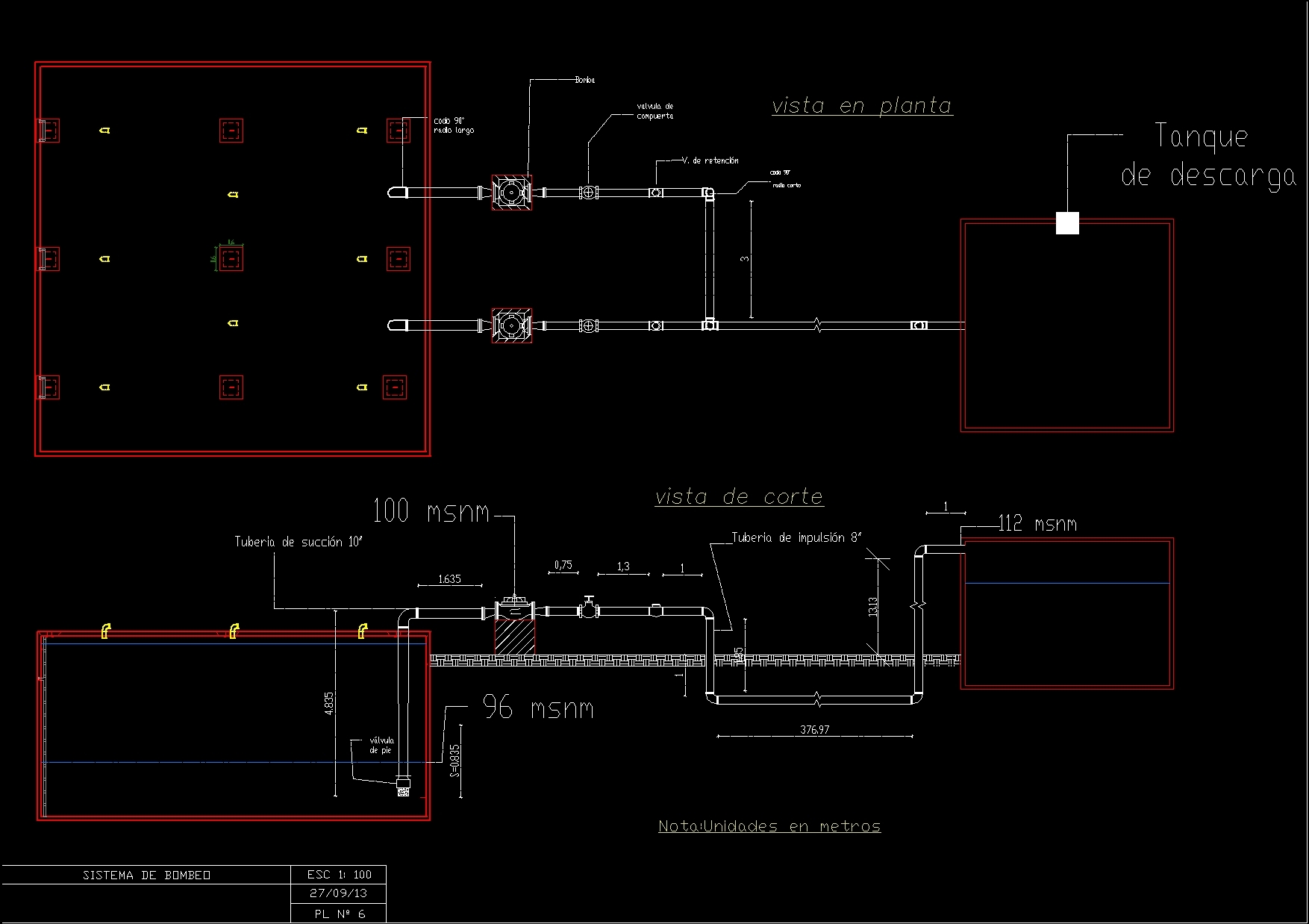

Pumping System DWG Block for AutoCAD

Pumping System – Ground – Cut

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pumping system, Pl no, Esc, Plant view, Discharge tank, bomb, gate valve, V. retention, Short radius elbow, Elbow long radio, Foot valve, Cutting, Suction pipe, Drive pipe, Msnm, Note: units in meters

Raw text data extracted from CAD file:

0,6 0,6 S=0.835 4.835 0,75 1,3 1 1.85 1 1 376.97 3 1.635 13.13 SISTEMA DE BOMBEO 27/09/13 PL Nº 6 ESC 1: 100 5 5 vista en planta Tanque de descarga Bomba valvula de compuerta V. de retención codo 90° radio corto codo 90° radio largo válvula de pie S=0.835 4.835 5 5 5 1.85 5 1 376.97 3 1.635 \Lvista de corte Tuberia de succión 10" Tuberia de impulsión 8" 100 msnm 112 msnm 96 msnm 13.13 Nota:Unidades en metros

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)

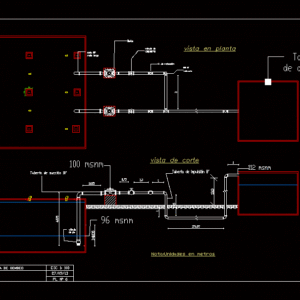

Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, Cut, DWG, einrichtungen, facilities, gas, gesundheit, ground, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, pumping, system, wasser bestimmung, water
