Ramp Accessibility DWG Detail for AutoCAD

Ramp Accessibility DWG Detail for AutoCAD

Detail accessibility ramp for driveway

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

ramp, ramp up, differentiated texture, ramp, recessed guide, embankment, track pavement, or parking, detail – ramp, no scale

Raw text data extracted from CAD file:

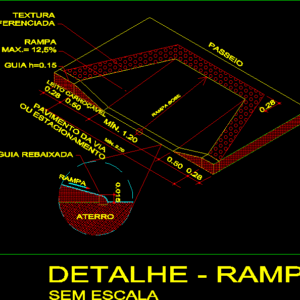

RAMPA i. MAX.= 12,5% MÍN. 2.20 MÍN. 1.20 0.50 0.50 GUIA h=0.15 LEITO CARROÇÁVEL PASSEIO RAMPA SOBE TEXTURA DIFERENCIADA 0.28 0.28 0.28 RAMPA 0.015 GUIA REBAIXADA ATERRO PAVIMENTO DA VIA OU ESTACIONAMENTO DETALHE - RAMPA SEM ESCALA

Language	Portuguese
Drawing Type	Detail
Category	People
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Parking
Tags	access, accessibility, autocad, Behinderten, DETAIL, disabilities, DWG, forme, handicapées, handicapés, handicapped, l'accès, la plate, plataforma de acesso, platform, Plattform, ramp, rampa, Rampe, stairs, Zugang
