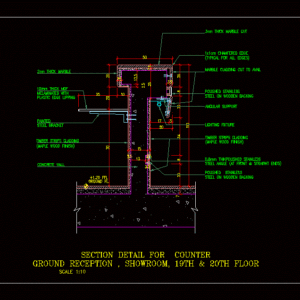

Reception – Counter Section Details

Drawing labels, details, and other text information extracted from the CAD file:

timber strips cladding, section detail for counter, melaminated with, steel bracket, painted, plastic edge lipping, angular support, lighting fixture, marble cladding cut to avail, steel on wooden backing, polished stainless, polished stainless, concrete wall, ground fl.

Raw text data extracted from CAD file:

\A1;70 \A1;50 \A1;20 \A1;20 \A1;10 \A1;35 \A1;12.5 \A1;2.5 \A1;2 \A1;2 \A1;20 \A1;8 \A1;34 \A1;3 \A1;2 \A1;25 \A1;110 \A1;3 \A1;2 \A1;7 \A1;17 \A1;3 \A1;20 \A1;20 \A1;8 \A1;20 \A1;15 \A1;2.5 \A1;2.5 \A1;13 \A1;3.5 TIMBER STRIPS CLADDING (MAPLE WOOD FIINISH) (MAPLE WOOD FIINISH) TIMBER STRIPS CLADDING 0.8mm THIKPOLISHED STAINLESS STEEL ANGLE (AT FRONT & STRAIGHT ENDS) SECTION DETAIL FOR COUNTER 5 5 5 5 5 5 5 5 5 5 18mm THICK MDF MELAMINATED WITH STEEL BRACKET PAINTED 2cm THICK MARBLE PLASTIC EDGE LIPPING 5 5 5 5 5 5 5 3cm THICK MARBLE CUT 5 5 5 5 5 5 5 5 5 ANGULAR SUPPORT LIGHTING FIXTURE 5 5 5 MARBLE CLADDING CUT TO AVAIL STEEL ON WOODEN BACKING POLISHED STAINLESS 5 5 POLISHED STAINLESS STEEL ON WOODEN BACKING 1x1cm CHAMFERED EDGE (TYPICAL FOR ALL EDGES) CONCRETE WALL +1.20 FFL GROUND FL. SCALE 1:10 GROUND RECEPTION , SHOWROOM, 19TH & 20TH FLOOR

Language	English
Drawing Type	Section
Category	Furniture & Appliances
Additional Screenshots
File Type	dwg
Materials	Concrete, Plastic, Steel, Wood, Other
Measurement Units	Metric
