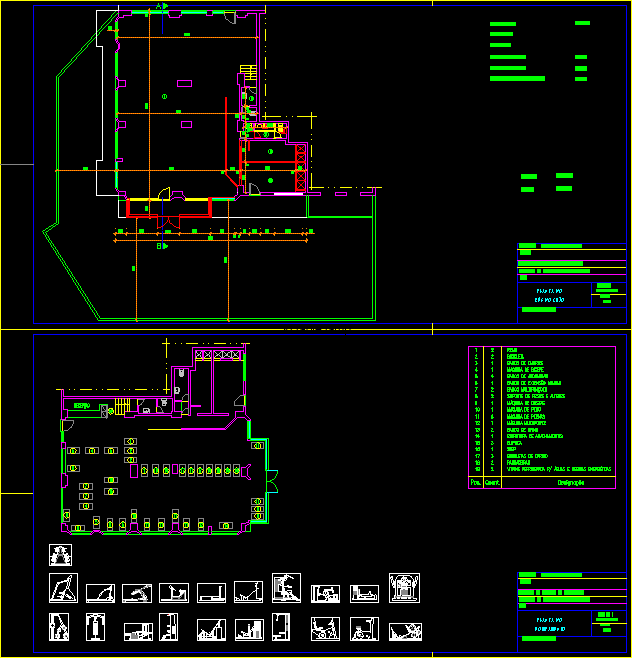

Project in order to permit modifications inside the establishment and construction of a removable aluminum structure in the terrace. While not major, the changes improve space utilization–a wall forming an antechamber in the locker room, spa and gym, and construction of two spas, bronze adonized glass extended on the exterior. Alterations are indicated by colors– conventional new construction vermillion, yellow for demolition. Changes were made before the acquisition of the current owner

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

ground floor, architect inscribed no, plant, address: applicant :, place :, scales :, project of change of use, gymnasium and health, lda., pos., designation, quant., equipment, gross area , floor area, reception

Raw text data extracted from CAD file:

16.65 1.68 .25 12.60 9.70 1.20 4.85 .80 1.35 11.05 1.60 1.35 .90 2.85 1.35 1.90 2.70 1.04 5.29 2.18 .79 1.00 1.10 2.50 .40 2.80 2.00 2.80 17.29 11.05 9.37 RÉS DO CHÃO o Arquitecto inscrito nº DES. Nº 1 PLANTA DO morada: requerente: local: 1/100 ESCALAS: OUTUBRO DE 2007 DES. Nº 1 PROJECTO DE MUDANÇA DE UTILIZAÇÃO GINÁSIO FISÍCO E SAÚDE, LDA. PROJECTO DE ALTERAÇÕES/ARQUITECTURA Pos. 1 2 REMO 3 1 BANCO DE OMBROS 4 1 MÁQUINA DE BICEPE 5 4 BANCO DE ABDOMINAIS 6 1 BANCO DE EXTENSÃO LOMBAR 7 2 BANCO MULTIFUNÇÕES 8 2 SUPORTE DE PESOS E ALTERES 9 1 MÁQUINA DE COSTAS 10 1 MÁQUINA DE PEITO 11 6 MÁQUINA DE PERNAS 12 1 MÁQUINA MULTIPOWER 13 2 BANCO DE SPINO 14 1 ESTRUTURA DE AGACHAMENTOS 15 3 ELIPTICA 16 1 STEP 17 3 BICICLETAS DE CARDIO 18 2 PASSADEIRAS 19 2 VITRINE REFRIGERADA P/ ÁGUAS E BEBIDAS ENERGÉTICAS Designação 2 2 BICICLETA Quant. PROJECTO DE ALTERAÇÕES/ARQUITECTURA PROJECTO DE MUDANÇA DE UTILIZAÇÃO GINÁSIO FISÍCO E SAÚDE, LDA. local: requerente: morada: PLANTA DO o Arquitecto inscrito nº EQUIPAMENTO ESCALAS: 1/100 DES. Nº 5 OUTUBRO DE 2007 16.65 1.68 5 12.60 9.70 .10 .15 .10 .10 5 5 5 5 11.05 .20 5 5 5 5 1.35 5 5 .15 .15 .15 .15 1 2 3 4 5 1- ESPAÇO GINÁSIO 2- I.S. MULHERES 3- I.S. HOMENS 187.30m2 15.40m2 ÁREA BRUTA -250.77m2 ÁREA ÚTIL -213.40m2 4- BALNEÁRIO/MULHERES 10.10m2 5- BALNEÁRIOS/HOMENS 6- ARRUMO DOS PRODUTOS DE LIMPEZA 0.60m2 6 5 5 5 5 5 1.10 2.50 5 5 5 5 5 11.05 9.37 1 2 2 3 4 5 19 RECEPÇÃO 6 13 13 7 7 4 8 8 5 3 9 10 11 11 11 11 12 14 1 18 18 15 15 15 16 17 17 17 11 11 5 5 .25 .10 .41 B A
