Residential Compound Roof Plan with Solar Panels and Terraces

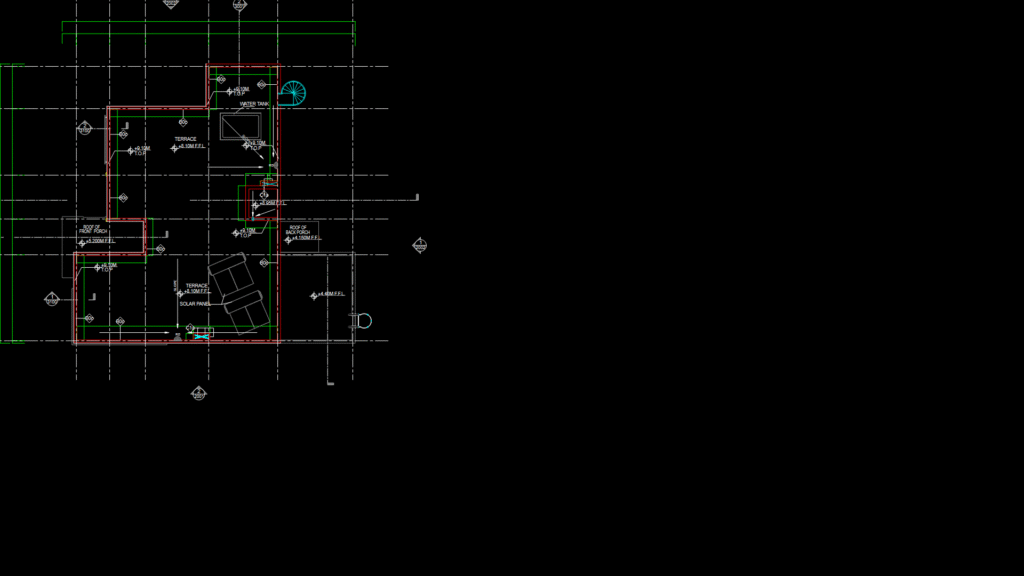

This roof plan for a residential compound in Al Seyouh, Sharjah depicts the layout of multiple roof terraces positioned at varying elevations (+4.40m, +8.10m). The plan incorporates sustainability features including roof-mounted solar panels and a water tank. Key dimensions show a footprint of approximately 17m × 16.9m with structural grid lines defining the building envelope. Specific terrace areas include finished floor levels (F.F.L.) clearly marked, with the highest point reaching +9.10m (T.O.P). The design employs AAC and masonry blocks as noted in the wall type legend, with references to fire ratings. The drawing also indicates roof drainage elements and includes demarcation of front and back porch roof structures. The overall layout suggests a modern villa design with integrated outdoor living spaces at multiple levels.

Language	English
Drawing Type	Plan
Category	Blocks & Models
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units	Metric
Footprint Area	250 - 499 m² (2691.0 - 5371.2 ft²)
Building Features	Deck / Patio
Tags	AAC blocks, residential compound, roof plan, Sharjah housing, solar panel installation, terrace layout, villa architecture
