Residential Front Elevation with Integrated Garage and Landscape

ADVERTISEMENT

ADVERTISEMENT

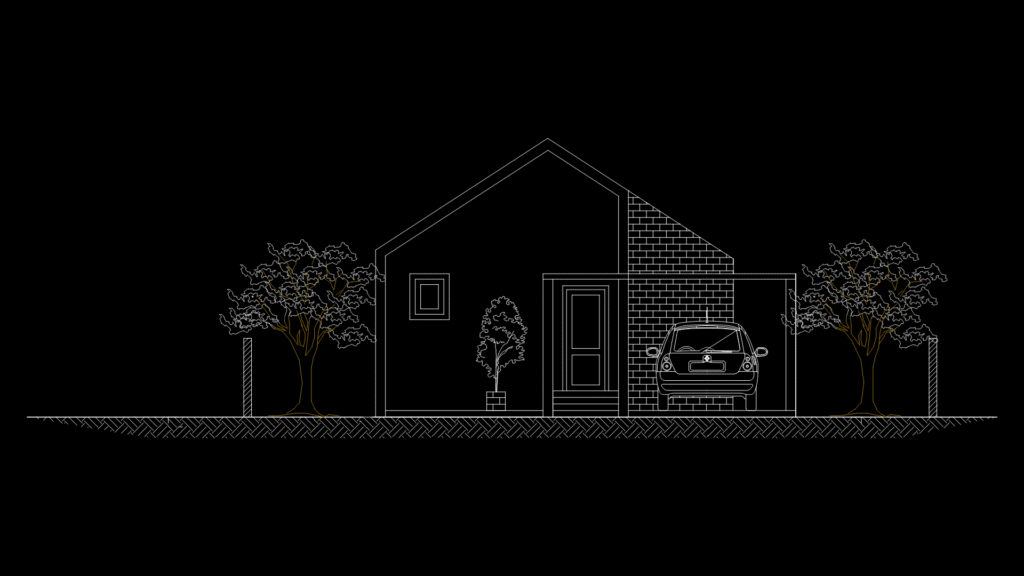

This front elevation depicts a single-story residential structure with an attached garage featuring mixed material construction. This dwelling employs a gabled roof design with approximately 5:12 pitch and incorporates brick masonry on the right façade portion while maintaining simpler finishes on the left. The central entrance features a standard residential door with steps, flanked by a square window on the left elevation. Notable is the integrated single-car garage designed to accommodate a Renault Clio, as indicated by the block reference. The landscape plan includes mature deciduous trees at both property boundaries with a smaller ornamental tree centerfront, creating balanced visual approach. The property boundary is subtly defined with minimal fencing elements. The proportioning suggests approximately 8-9m width for the main structure, following typical residential scale standards, with the masonry detail providing textural contrast against the clean lines of the remainder of the façade.

Language English
Drawing Type Elevation
Category
Additional Screenshots
File Type dwg
Materials Glass, Masonry
Measurement Units Metric
Footprint Area 50 - 149 m² (538.2 - 1603.8 ft²)
Building Features Garage
Tags , , , , , ,
ADVERTISEMENT

Release Information

  • Price
    :

    $0.00

  • Categories
    :
  • Released
    :

    April 13, 2025
