Restaurant, Hotel 2D DWG Plan for AutoCAD

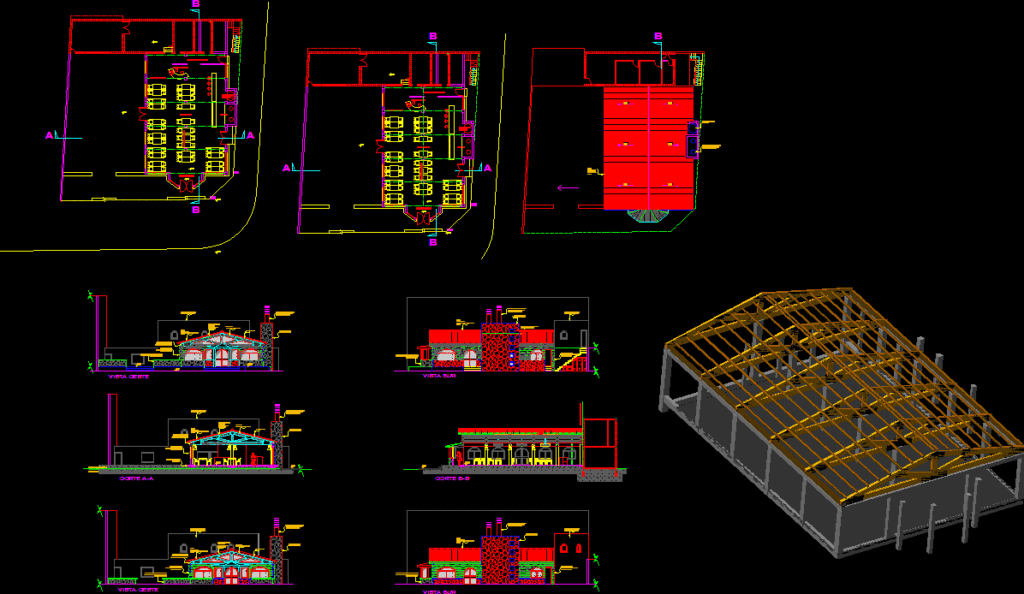

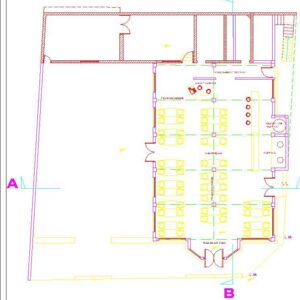

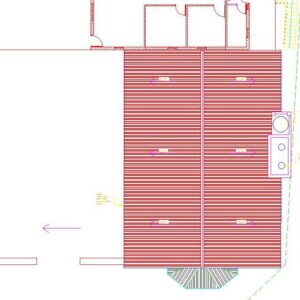

Plan, section and elevation view of restaurant. Plan has ground floor with following areas – hall, entrance, 26 dining table with 2 chairs, grill area, rest room and living room. It also has detailed and structure of roof plan. Total foot print area of the plan is approximately 440 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 250 - 499 m² (2691.0 - 5371.2 ft²) |
| Building Features | A/C |
| Tags | autocad, DWG, elevations, floorplan, grill, Hotel, plan, Restaurant, sections, structure |
