Retaining Wall DWG Block for AutoCAD

Retaining Wall DWG Block for AutoCAD

Retaining wall padding designed to overload yr. not include earthquake

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

vert, stone filter max., vert, vert, super, infer, retaining wall details, dimension of walls of contensionv, formwork, vert, vert, vert, super, infer, retaining wall details, longitudinal, hospitalization room

Raw text data extracted from CAD file:

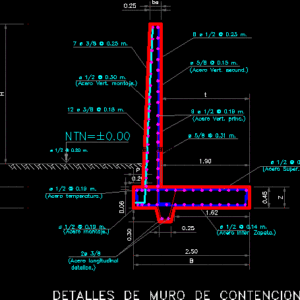

ø 1/2 @ 0.25 m. (Acero Vert. princ.) Piedra filtro de 2" max. ø 5/8 @ 0.175 m. (Acero Vert. secund.) ø 1/2 @ 0.35 m. (Acero Vert. montaje.) 14 ø 3/8 @ 0.125 m. 9 ø 3/8 @ 0.175 m. 7 ø 3/8 @ 0.25 m. 7 ø 3/8 @ 0.25 m. 6 ø 3/8 @ 0.30 m. 4 ø 3/8 @ 0.40 m. (Acero Super. Zapata.) ø 1/2 @ 0.20 m. (Acero Infer. Zapata.) (Acero temperatura.) (Acero montaje.) DETALLES DE MURO DE CONTENCION 5 5 5 5 5 5 5 5 5 5 5 NTN=±0.00 Z B bt P H 5 bs t 5 ø 1/2 @ 0.20 m. ø 1/2 @ 0.20 m. ø 1/2 @ 0.20 m. 4.40 0.60 0.45 Z B bt P bs t 0.45 2.55 0.25 0.05 0.60 1.55 0.75 0.75 H 0.20 0.45 3.00 0.50 0.45 Z B P bs t 0.45 2.50 0.06 0.20 1.62 H 0.25 0.30 1.90 0.25 Dimension de Muros de Contensionv D1 Encofrado H B Z P t bs bt 3.00 2.50 0.45 0.20 1.90 0.25 0.25 ø 1/2 @ 0.20 m. ø 5/8 @ 0.31 m. (Acero Vert. princ.) ø 5/8 @ 0.15 m. (Acero Vert. secund.) ø 1/2 @ 0.30 m. (Acero Vert. montaje.) 12 ø 3/8 @ 0.18 m. 7 ø 3/8 @ 0.25 m. 9 ø 1/2 @ 0.19 m. 8 ø 1/2 @ 0.23 m. (Acero Super. Zapata.) ø 1/2 @ 0.14 m. (Acero Infer. Zapata.) (Acero temperatura.) (Acero montaje.) DETALLES DE MURO DE CONTENCION 5 5 5 5 5 5 5 5 NTN=±0.00 Z B P H 5 bs t 5 ø 1/2 @ 0.19 m. ø 1/2 @ 0.19 m. ø 1/2 @ 0.14 m. 5 5 (Acero longitudinal 2ø 3/8 detellon.) sala de hospitalizacion
