Retaining Wall DWG Detail for AutoCAD

Retaining Wall DWG Detail for AutoCAD

Detail of wall enclosure with everything needed for regulatory operation

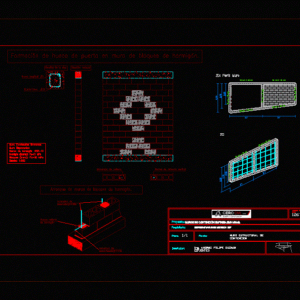

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

stirrup, vertical reinforcement bars, solid filling, beam section, vertical section, formation of door hollow in concrete block wall., armor of, vertical reinforcement, hollow filling, of concrete, starting of concrete block walls., wall containment emissaries, wall repair, concrete standard:, concrete mpa, mpa blocks, scale:, cm cm, cm cm, wall profile, bar length., armor of, horizontal reinforcement, plant:, owner:, flat:, designer:, draft:, cype software license, retaining walls company emissaries., miscellaneous companies in medellin, structural retaining wall, ing. andrés felipe guzmán cifuentes

Raw text data extracted from CAD file:

Estribo #2 Barras de refuerzo vertical Macizado de relleno Sección de la viga Sección vertical Formación de hueco de puerta en muro de bloques de hormigón. Armadura de refuerzo vertical #4 @ 0.80m Hueco relleno de hormigón Arranque de muros de bloques de hormigón. Muro Contencion Emvarias Muro Reparacion Norma de hormigón: NSR-10 Hormigón (Barras): f'c=21 MPa Bloques (Muro): f'c=10 MPa Escala: 1:100 30 cm x 25 cm 30 cm x 25 cm 30 cm x 25 cm 3.7 3.7 2.33 2.78 3.23 3D 30 cm x 25 cm 30 cm x 25 cm 30 cm x 25 cm 30 cm x 25 cm 30 cm x 25 cm 30 cm x 25 cm 30 cm x 25 cm 3.7 3.7 2.33 2.78 3.23 2D: Perfil Muro Barra longitud. #3 Armadura de refuerzo Horizontal #3 @ 0.6m Planta: Propietario: Plano: Diseñador: Proyecto: Licencia Software CYPE MUROS DE CONTENCIÓN EMPRESA EMVARIAS. EMPRESAS VARIAS DE MEDELLÍN ESP MURO ESTRUCTURAL DE CONTENCION Ing. ANDRÉS FELIPE GUZMÁN CIFUENTES 126723 1/1

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
