Retaining Walls And Dams DWG Block for AutoCAD

Retaining Walls And Dams DWG Block for AutoCAD

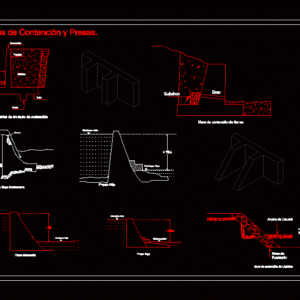

Display some parts of the dam and retaining walls as well as some of their rankings.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

coronation, behind, raised, filling, toecap, heel, heel, parts of a retaining wall, subdren, drain, retaining wall, flow width, foundation level, foundation rock, liquid retaining wall, retaining walls., lifting the crown, cimancio, low shunt dam, upstream level, downstream level, upstream level, downstream level, intermediate dam, upstream level, downstream level, low dam, high prey

Raw text data extracted from CAD file:

> 75m >25 < 25m Coronación C Trasdós Alzado Relleno Puntera Tacón Talón Partes de un muro de contención Subdren Dren Muro de contención de tierras Ancho de Caudal Nivel de Fundación Roca de Fundación Muro de contención de Líquidos Muros de Contención y Presas. Elevación de la corona Cimancio Presa Baja Derivadora > 75m Nivel Aguas Arriba Nivel Aguas Abajo >25 Nivel Aguas Arriba Nivel Aguas Abajo Presa Intermedia < 25m Nivel Aguas Arriba Nivel Aguas Abajo Presa Baja Presa Alta
